What is a DC power jack function?

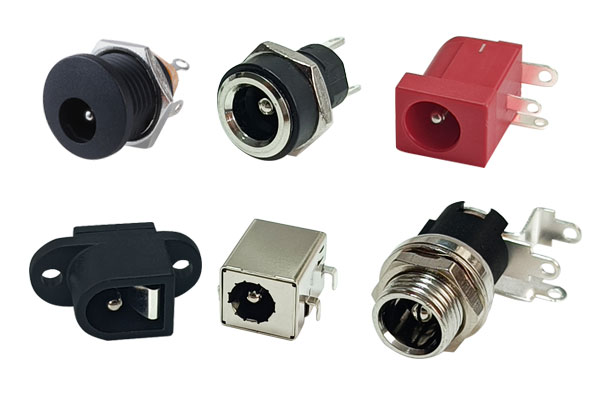

A DC power jack, also known as a barrel jack or a power connector, is a simple yet important component that plays a crucial role in electronic circuits. It is a plug-in port that connects a power supply adapter to a device such as a laptop, router, or audio player.

The function of a DC power jack is to provide external power to a device. It ensures that the device gets the required voltage and current to operate efficiently. It is an essential part of electronic devices that need a power supply to operate, including laptops, computers, routers, and audio players.

A DC power jack consists of the cylindrical outer shell, the inner pin, and the spring. The outer shell is the negative terminal, while the inner pin is the positive terminal. The spring provides the necessary pressure to hold the connector in place to ensure a solid connection.

When the power adapter is connected to the DC power jack, the adapter delivers DC voltage and current to the device. The voltage and current depend on the power adapter's output rating and the device's power requirements. The adapter converts the AC voltage from the wall outlet to the DC voltage and current that the device needs.

A DC power jack is a simple but reliable way to connect a device to a power supply. It is easy to use and requires no special skills or knowledge. The jack is designed to fit the power adapter plug perfectly, ensuring a secure and stable connection. The jack can also be easily replaced if it gets damaged or worn out.

The DC power jack serves as a critical link between the power supply and the device. Without a power jack, many electronic devices would be unable to function efficiently. It is an essential component that ensures the continuity of power supply to the device, which allows the device to perform its functions optimally.

The DC power jack is an important consideration in the design of many electronic devices. The jack's physical size, shape, and design must be carefully chosen to ensure compatibility with the power supply and the device. The jack must also be placed in a location that is convenient for the user to connect and disconnect the power supply adapter.

In conclusion, the DC power jack plays a crucial role in the operation of many electronic devices. It enables a reliable and easy connection between the power supply and the device, ensuring that the device gets the power it needs to operate efficiently. The design, size, and placement of the jack are crucial considerations in the design of many electronic devices. It is an essential component that ensures the continuity of power supply to the device, allowing it to perform its functions optimally.
