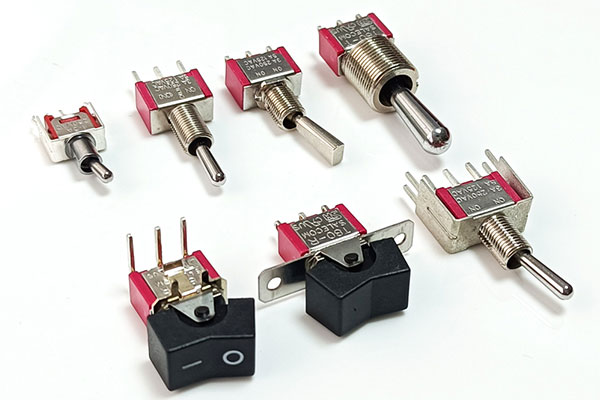

What You Need to Know About ON‑ON Sub Mini Toggle Switches

An ON-ON sub mini toggle switch is a small mechanical switch used when a circuit needs to select between two different operating paths. Unlike an ON-OFF switch, it does not simply turn the circuit off. Both positions are active, so the switch can connect one circuit to another depending on the position of the toggle.

From an engineer's point of view, an ON-ON switch is useful when a product needs a simple hardware selection function. It can be used for signal selection, operating-mode selection, power-path switching, or changing between two different circuit inputs. The compact size is also helpful when the available panel or PCB space is limited.

Key Features of an ON-ON Sub Mini Toggle Switch

The sub mini size is one of its main advantages. It takes up less space than a standard toggle switch while still providing a clear mechanical operation. The toggle position can be seen directly, making it easy for users or technicians to identify the current setting.

The ON-ON configuration provides two active positions. Depending on the circuit design, the switch can be used with different contact arrangements such as SPDT or DPDT. Engineers should check the circuit diagram, terminal arrangement, voltage, current rating, and mounting dimensions before selecting a model.

Another benefit is its straightforward mechanical structure. There is no software or programming involved. The switch physically changes the electrical connection when the toggle is moved, which makes it a practical choice for equipment that needs a direct and dependable control method.

Why Choose Rucoe?

For equipment manufacturers, having the correct specification available is important. Rucoe supplies toggle switches in different configurations to meet various electronic and control applications. Customers can select suitable contact arrangements, terminals, mounting styles, actuator designs, and electrical ratings according to their product requirements.

Rucoe also supports OEM and ODM projects, allowing customers to discuss special specifications when a standard switch does not fit the design. Sample support is available for testing and product development, while controlled production and inspection help maintain consistency during larger orders.

For buyers, the right ON-ON sub mini toggle switch should match the actual circuit, installation space, and operating conditions. A compact switch with the correct contact configuration can provide a simple way to control two circuit states while keeping the equipment design clean and easy to operate.
