SMD Waterproof Tact Switch Introduction

A Surface Mount Device (SMD) waterproof tact switch is an electronic component that is used in various applications such as consumer electronics, automotive products, healthcare equipment, and more. It is designed to provide a tactile response when pressed, which makes it easy for users to operate any device. The waterproof feature of the switch ensures that it is protected against exposure to liquids or moisture, making it ideal for use in harsh environments or outdoor applications.

What is a SMD Waterproof Tact Switch?

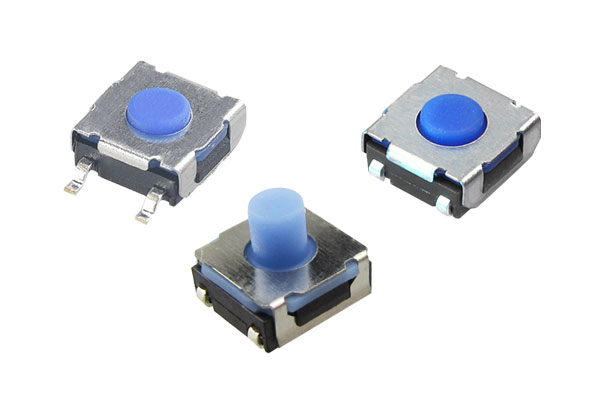

A SMD waterproof tact switch is a type of compact electronic switch that can be mounted directly onto a printed circuit board (PCB). It is designed to provide a tactile response when pressed, which gives users feedback that a device has been activated. The switch can be used to turn on or off a device, select different modes or settings, or trigger a specific function.

The waterproof feature of the switch makes it ideal for use in applications where it may be exposed to liquids or moisture, such as outdoor devices or healthcare equipment. The switch is protected by a waterproof sealing that prevents any moisture from penetrating the switch and damaging the electronics. This feature ensures that the switch is reliable and can withstand harsh environments.

How does a SMD Waterproof Tact Switch Work?

The basic structure of a SMD waterproof tact switch consists of a conductive spring, a contact plate, and a base with terminals. When the switch is pressed, the spring compresses and the contact plate moves down, completing the circuit and sending a signal to the device.

The switch has a tactile feedback feature that provides a distinct click sound and feel when the switch is pressed. This feature helps users to know when the switch has been activated.

The waterproof feature of the switch is achieved by using a silicone rubber seal that covers the terminals and the contact area of the switch. This seal prevents any liquid or moisture from penetrating the switch and protects the electronics from damage.

Advantages of using a SMD Waterproof Tact Switch

1. Waterproof Protection - The waterproof feature of the switch makes it resistant to moisture and liquids. This feature makes it ideal for use in applications where it may be exposed to harsh environments.

2. Tactile Feedback - The tactile feedback feature of the switch provides a click sound and feel when the switch is pressed. This feature makes it easy for users to operate a device without looking at it.

3. Compact Size - The SMD waterproof tact switch is small in size and can be mounted directly onto a PCB, making it a space-saving solution for electronic applications.

4. Low Power Consumption - The switch has a low power consumption, making it ideal for use in battery-powered devices.

Applications of SMD Waterproof Tact Switch:

1. Consumer Electronics - SMD waterproof tact switches are commonly used in consumer electronics such as mobile phones, digital cameras, remote controls, and more.

2. Automotive Products - The switches are used in automotive products such as car stereos, GPS systems, and more.

3. Healthcare Equipment - The waterproof feature of the switch makes it ideal for use in healthcare equipment such as blood pressure monitors, digital thermometers, and more.

4. Industrial Automation - SMD waterproof tact switches are used in industrial automation applications such as machinery control panels and automation systems.

A SMD waterproof tact switch is a compact and reliable electronic component that provides a tactile feedback when pressed. The waterproof feature of the switch makes it ideal for use in various applications such as consumer electronics, automotive products, healthcare equipment, and more. Its compact size, low power consumption, and tactile feedback feature make it a popular choice for electronic designers and manufacturers.
