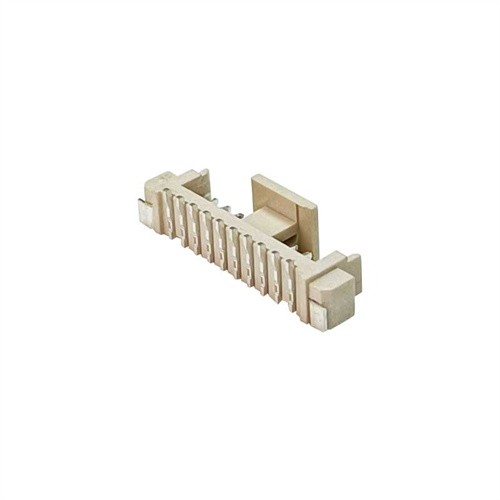

1.25mm Pitch Terminal Wafer SMT

A 1.25mm pitch terminal wafer SMT (Surface Mount Technology) refers to a specific type of electrical connector commonly used in electronics manufacturing. Let's break down what each term means:1.25mm Pitch: "Pitch" in this context refers to the distance between the center of one terminal (or pin) to the center of the next terminal on the connector.

1. A 1.25mm pitch means that the distance between the terminals is 1.25mm. This measurement is crucial because it determines compatibility with other components or connectors on a circuit board.

Terminal Wafer: A terminal wafer is a type of connector housing that contains multiple terminals (or pins) arranged in a specific configuration. These terminals are used for making electrical connections between different components or circuit boards. The wafer typically has a plastic housing that holds the terminals in place and allows for easy insertion into a corresponding receptacle or header.

2. SMT (Surface Mount Technology): SMT refers to a method of electronic component placement and soldering on a printed circuit board (PCB). Components designed for SMT have small metal contacts or leads that can be soldered directly onto the surface of the PCB, as opposed to through-holes used in traditional through-hole technology. SMT components are smaller and offer better electrical performance and reliability in many applications.

So, when you combine these terms, a "1.25mm pitch terminal wafer SMT" would describe a connector with terminals spaced 1.25mm apart, housed in a wafer-style configuration suitable for surface mounting onto a PCB using SMT techniques. These connectors are often used in various electronic devices and applications where space-saving, high-density interconnections are required, such as in laptops, smartphones, and other compact electronics.

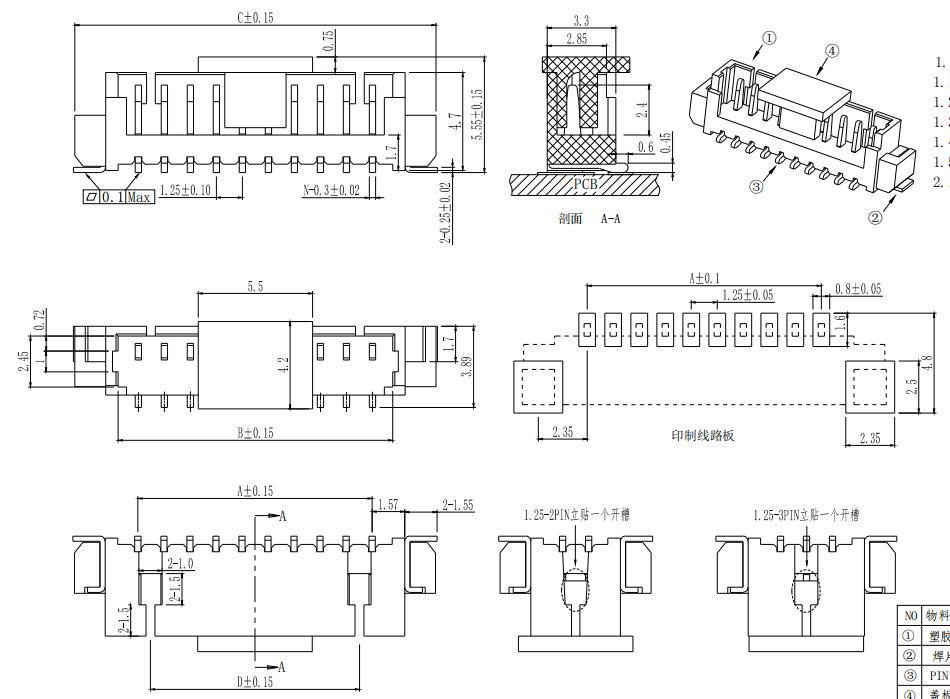

PRODUCT DIMENSION

OUR EXHIBITIONS

EQUIPMENT

We have horizontal injection molding machine,punching machine,vertical milling machine,life tester,insulation resistance tester,salt spray tester,load curve meter,laser engraving machine.
