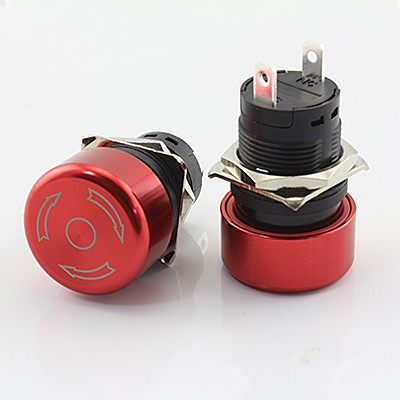

Estop Push Button

An Emergency Stop (E-Stop) push button is a critical safety component used in various industrial, commercial, and public applications to immediately halt machinery or processes in emergency situations. Here, we'll discuss the specifications of an E-Stop push button in detail, covering its design, operational features, electrical specifications, environmental ratings, compliance standards, and applications.

Design and Construction

Dimensions: The diameter of the button head can vary, with common sizes including 16mm, 19mm, 22mm, and 30mm, depending on the application and space constraints.

Color and Shape: Typically red, often mounted on a yellow background to enhance visibility. Mushroom-shaped head for easy and quick activation.

Materials:

Made from durable materials such as high-grade plastic or metal to withstand harsh environments and repeated use.

Contacts are usually made from silver or gold-plated materials to ensure reliable electrical conductivity.

The specification of an E-Stop push button encompasses its design, operational features, electrical and environmental ratings, compliance with standards, and wide-ranging applications. These specifications ensure that E-Stop buttons provide reliable and immediate cessation of operations, safeguarding human life, equipment, and the environment across various settings.

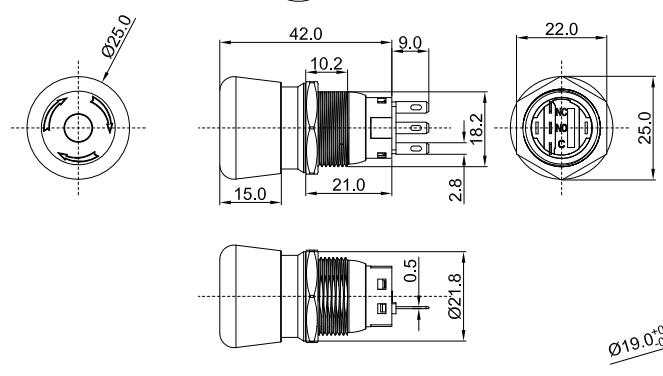

PRODUCT DIMENSION
