Introduction to LED Tact Switches

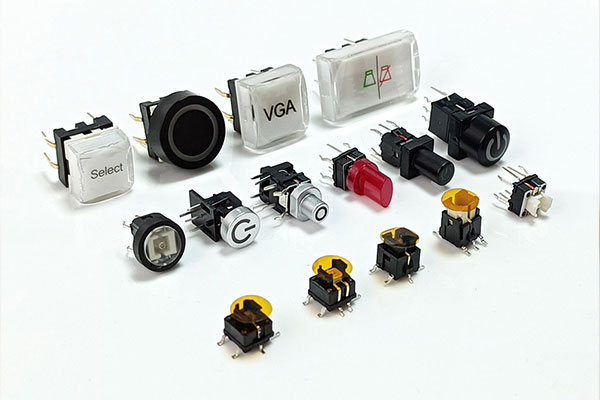

A LED Tact Switch is a compact, versatile electromechanical component that combines a tactile momentary switch with an integrated LED indicator. Designed to deliver both user interaction and visual feedback, these switches are widely used in applications where space efficiency, durability, and clear status indication are critical.

Structure and Functionality

The switch consists of a tactile button mechanism that provides a discernible "click" feedback upon actuation, ensuring reliable input registration. Beneath the button, a metal dome or contact system completes the circuit when pressed. The integrated LED, typically located beneath or around the button, illuminates to signal status—such as power-on, mode activation, or system alerts—enhancing user experience through immediate visual confirmation.

Key Features

- Tactile Feedback: Sharp, responsive actuation with a typical lifespan of 100,000 to 1,000,000 cycles.

- LED Integration: Available in multiple colors (red, green, blue, etc.) for customizable indications. Some variants include built-in resistors for simplified circuit design.

- Compact Design: Low-profile form factors suitable for densely packed PCBs, with options for surface-mount (SMT) or through-hole mounting.

- Environmental Resilience**: Often rated for operating temperatures from -20°C to +70°C, with moisture-resistant options.

- Electrical Versatility: Compatible with low-voltage digital circuits (e.g., 3–12V) and adaptable to various actuation forces (e.g., 160gf to 250gf).

Applications

LED Tact Switches are ideal for:

- Consumer Electronics: Keyboards, remote controls, gaming devices.

- Industrial Systems: Control panels, machinery interfaces.

- Medical Devices: Equipment status indicators.

- Automotive and IoT: Dashboard controls, smart home devices.

Benefits

By merging input and output functionalities, LED Tact Switches streamline design complexity in space-constrained applications while improving user interaction. Their durability and customization options (e.g., LED color, actuator shape) make them a go-to choice for engineers prioritizing reliability and aesthetics in modern electronic design.

Whether for prototyping or mass production, LED Tact Switches offer a practical solution for intuitive, illuminated user interfaces.
