Intro Of Red-Blue Dual Color Illuminated Tactile Switch

A red-blue dual color illuminated tactile switch is an electronic component commonly used in devices that require user input. This type of tactile switch is unique in that it has two colors, red and blue, and can illuminate both colors at the same time or separately, depending on the circuit design.

Tactile switches are designed to provide feedback to the user when they are pushed. When a user pushes a switch, it makes contact with the underlying circuit board, completing an electrical circuit. The feedback provided by the switch can vary, depending on the type of tactile switch.

The red-blue dual color illuminated tactile switch is commonly used in gaming devices, consumer electronics, and automotive applications. In gaming devices, the switch can be used to indicate player actions, such as the activation of weapons or character movements. The switch can also be used in consumer electronics, such as remote controls or audio equipment, to indicate when a function has been activated.

In automotive applications, the red-blue dual color illuminated tactile switch is commonly used in dashboard controls. The switch can be used to indicate when a function is active, such as when the headlights are on or when the windshield wipers are in use. It can also be used to indicate warning messages, such as when there is a low fuel level or when a door is open.

The dual color feature of the switch allows for more flexibility in design, enabling the use of two colors for different purposes. For example, the red color can be used to indicate a warning or failure, while the blue color can indicate a successful action or activation.

The illumination feature of the switch is accomplished using an LED, which is integrated into the switch. The LED can be programmed to illuminate when the switch is activated, providing visual feedback to the user. The LED can also be programmed to remain illuminated for a set period of time, indicating a function is still active even after the switch is released.

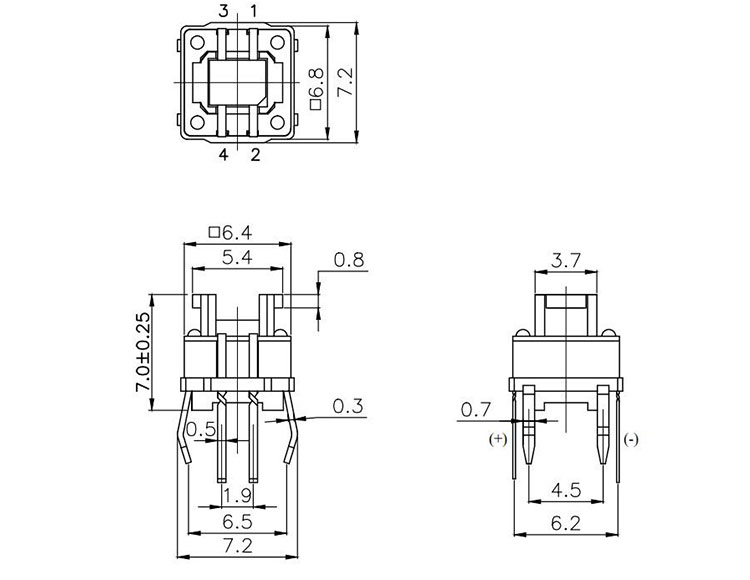

The red-blue dual color illuminated tactile switch is available in a variety of sizes and shapes, making it easy to integrate into different applications. The switch can be mounted directly onto a circuit board or embedded into a control panel.

When selecting a red-blue dual color illuminated tactile switch, it is important to consider the required operating force and lifespan. The operating force is the amount of force required to activate the switch, while the lifespan is the number of times the switch can be activated before it becomes worn out.

In conclusion, the red-blue dual color illuminated tactile switch is a versatile component used in a wide range of applications. Its dual color and illumination features provide flexibility in design, and its integration with LED technology enhances its functionality. When selecting a switch for a specific application, factors such as operating force and lifespan should be considered to ensure optimal performance.
