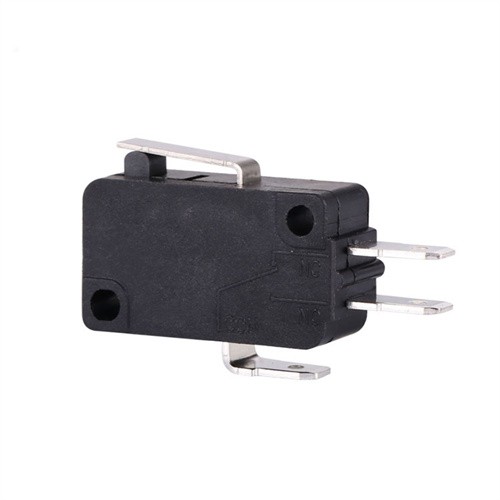

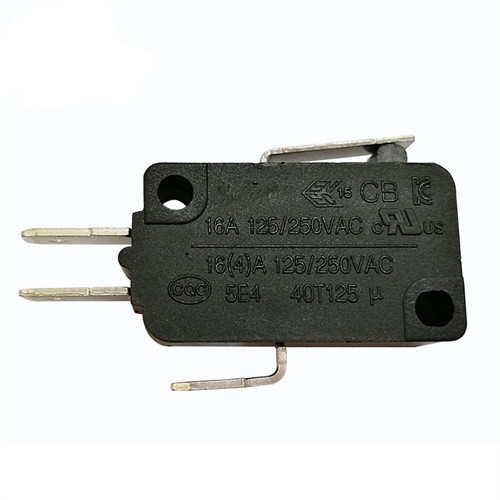

16A Micro Switch With Level

The 16A Micro Switch with Lever is a high-performance, industrial-grade switch designed to deliver precise and reliable operation in a wide variety of applications. This switch is built to handle higher current loads of up to 16A, making it ideal for power-hungry circuits and devices. The addition of a lever actuator enhances the switch’s versatility by allowing for easier activation and more precise switching, especially in systems requiring a momentary contact or limit switch.

The 16A Micro Switch with Lever combines the compact size and efficiency of a micro switch with the added benefit of a lever mechanism, making it ideal for high-current control, safety applications, and automated systems. It is particularly well-suited for environments where space is at a premium but where reliable, high-power switching is required.

In this introduction, we will explore the key features, specifications, and applications of the 16A Micro Switch with Lever, emphasizing its performance, durability, and flexibility across various industries.

Key Features of the 16A Micro Switch with Lever

1. High Current Rating (16A):The 16A Micro Switch is capable of handling up to 16A at 125V AC or 250V AC, making it suitable for use in high-power applications. It also handles 10A at 12V DC or 24V DC, providing reliable switching for both AC and DC circuits. This high current capacity makes it a versatile component in industrial machinery, automated systems, and power distribution circuits.

2. Lever Actuation:The lever actuator enhances the switch's functionality by making it easier to activate the switch, especially in environments where users need to apply force or trigger the switch from a distance. The lever mechanism provides a mechanical advantage, allowing for lighter actuation force and more accurate switching. The lever also ensures tactile feedback, so users can feel when the switch has been properly engaged.

3. Compact Design:Despite its high current rating, the 16A Micro Switch with lever retains a compact form factor. The small size makes it easy to integrate into space-constrained applications without compromising on performance. This is particularly beneficial in control panels, automated systems, and consumer electronics where space is limited but reliable switching is still required.

4. Durability and Reliability:The switch is constructed with high-quality materials, ensuring that it can endure the demands of frequent switching, high-impact environments, and exposure to wear and tear. Its long mechanical life, often rated at over 1 million cycles, makes it highly reliable for continuous use in industrial and commercial applications.

5. Precise Switching:The lever provides a precise actuation mechanism, which ensures that the switch engages accurately and consistently. The momentary contact design makes it suitable for applications requiring short-duration activation, such as reset buttons, safety cut-offs, and limit switches.

6. Wide Operating Temperature Range:Designed to work in a variety of environments, the 16A Micro Switch with Lever typically has an operating temperature range of -25°C to +85°C, ensuring that it can perform reliably even in extreme temperatures, from cold outdoor environments to high-temperature industrial settings.

Features

Adopt thermosetting plastic or thermoplastic;

Small contact gap, snap action, high sensitivity and small operating travel;

Variety of levers;

Widely used in appliance, electronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool etc.
