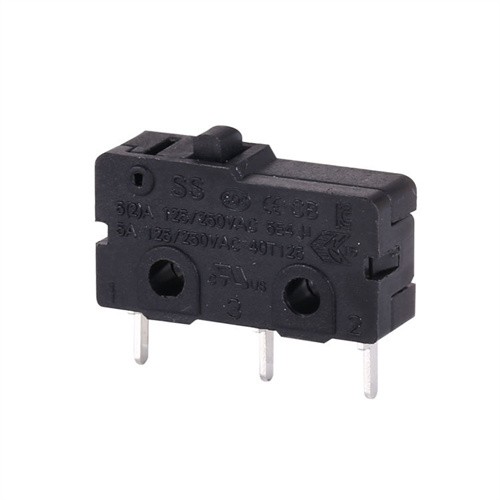

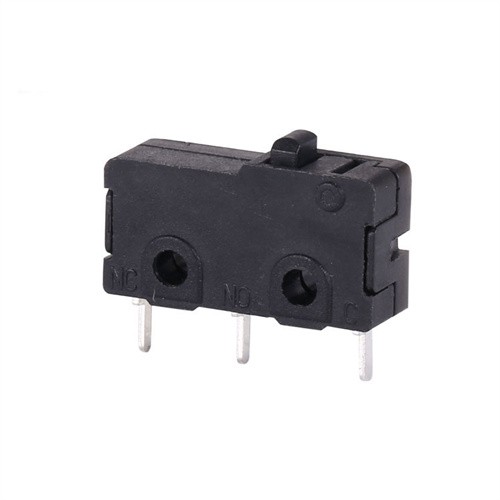

PCB Terminal Pin Plunger Micro Switch

The PCB Terminal Pin Plunger Micro Switch is a highly reliable, precision-engineered component designed to provide mechanical switching for a variety of electronic and industrial applications. This type of micro switch integrates seamlessly with printed circuit boards (PCBs), offering a compact and effective solution for applications where space constraints and precise switching are critical. Featuring a pin plunger actuator, this micro switch provides tactile feedback and snap-action operation, ensuring quick, accurate, and reliable switching performance.

The PCB Terminal Pin Plunger Micro Switch is commonly used in automated systems, consumer electronics, safety circuits, and control panels. It offers a high level of durability, a long operational life, and is designed to handle a range of current ratings, typically up to 5A, depending on the application. Its small footprint and ability to be mounted directly onto a PCB make it ideal for devices that require low-profile switching solutions.

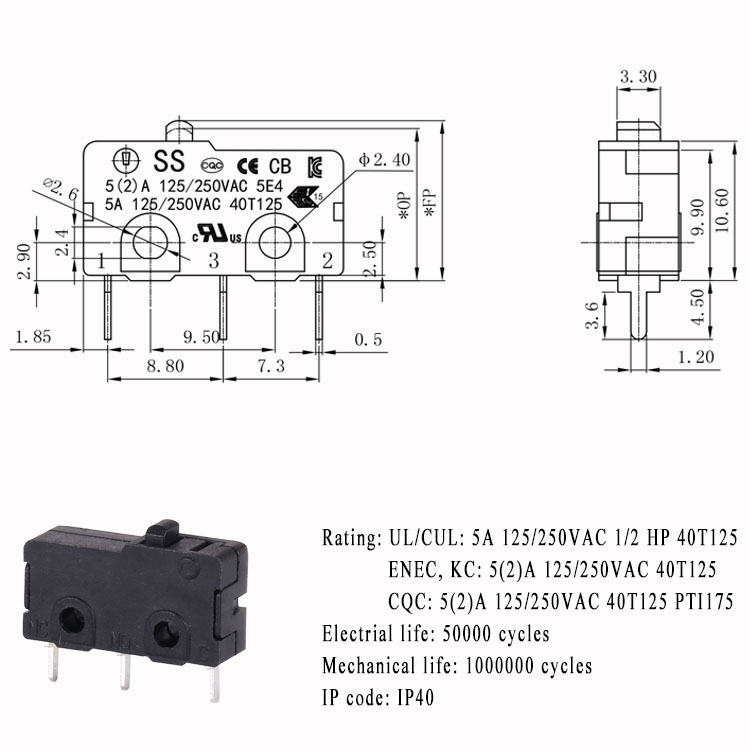

In this article, we will examine the key features, technical specifications, and applications of the PCB Terminal Pin Plunger Micro Switch, emphasizing its importance in ensuring smooth, reliable operation in electronic devices and systems.

Benefits of the PCB Terminal Pin Plunger Micro Switch

1. Precise and Reliable Switching:The snap-action design ensures fast and precise switching, even in high-frequency applications, making the switch highly reliable for circuits requiring quick response times.

2. Compact and Efficient Integration:Its small footprint allows the PCB Terminal Pin Plunger Micro Switch to fit easily into devices with limited space, reducing the need for bulky switches while still delivering reliable performance. Its through-hole mounting makes it simple to install directly on a PCB, providing a space-efficient solution for compact designs.

3. Long-Term Durability:Built to last, this micro switch offers millions of cycles of mechanical life, ensuring that it will continue to operate reliably over extended periods without failure, making it suitable for high-frequency or heavy-duty applications.

4. Versatility Across Multiple Industries:With its wide voltage and current ratings, the switch can be used across a variety of industries and applications, including automated systems, consumer electronics, security systems, and industrial machinery.

5. Tactile Feedback for User Interaction:The pin plunger actuator provides clear tactile and audible feedback, making it easy for users to confirm the activation of the switch. This feedback is particularly useful in safety systems or environments where precise actuation is essential.
