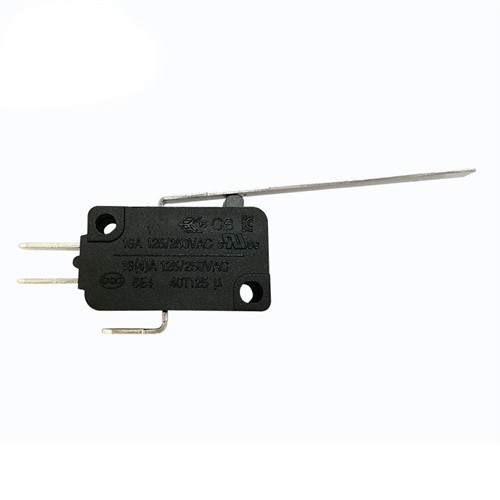

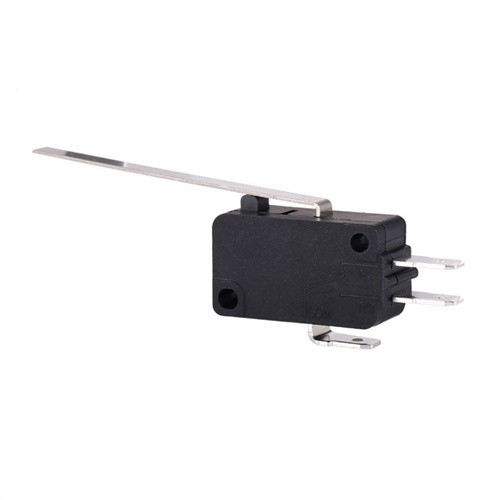

Snap-in Micro Switch 16A

The Straight Lever Micro Switch is a robust and highly reliable electrical switch designed to deliver precise, dependable operation in a wide variety of applications. Known for its straight lever actuator, this switch is engineered to handle both high and low current circuits with ease. Offering exceptional mechanical and electrical performance, it is widely used in industrial systems, automotive circuits, home appliances, and consumer electronics.

Micro switches are known for their small size and quick action. The straight lever design adds an additional layer of versatility and user-friendliness, making it easier to trigger the switch with less force compared to traditional plunger-actuated switches. The straight lever actuator enhances tactile feedback, ensuring users can easily detect when the switch has been engaged. This type of switch is often chosen for its precise operation, high durability, and ability to handle various applications that require a momentary action or limit switch functionality.

In this introduction, we will examine the key features, specifications, and applications of the Straight Lever Micro Switch, highlighting its capabilities and versatility in different industries.

Key Features of the Straight Lever Micro Switch

1. High-Precision Operation:The straight lever actuator provides precise and quick actuation with minimal physical force. When the lever is pushed, the switch’s contacts close or open with accuracy, providing instantaneous feedback. This makes it suitable for applications where accurate and fast switching is crucial, such as limit switches or position sensors.

2. Compact and Durable Design:The Straight Lever Micro Switch is designed with a small form factor, making it easy to install in space-constrained environments. Despite its compact size, the switch is highly durable, designed to withstand harsh environments, vibration, and mechanical shock. Its long mechanical life—often rated for up to 1 million cycles—ensures it can endure frequent use without significant wear.

3. High Current and Voltage Ratings:These switches are available in a variety of current ratings, commonly up to 15A or 20A, and are suitable for AC and DC circuits. With voltage ratings ranging from 12V DC to 250V AC, the Straight Lever Micro Switch can handle both low and high-power applications. This makes it ideal for home appliances, industrial machinery, and automotive systems that require reliable switching under different load conditions.

4. Positive Tactile Feedback:The lever actuator provides positive tactile feedback, allowing the user to feel when the switch has been properly engaged. This feedback is especially valuable in applications where the user needs confirmation of switch activation, such as in safety circuits or emergency stop mechanisms.

5. Wide Operating Temperature Range:The switch typically operates within a wide temperature range, from -25°C to +85°C, making it suitable for use in varied environmental conditions. Whether exposed to high heat in industrial settings or used in cold outdoor environments, the switch continues to perform reliably.
