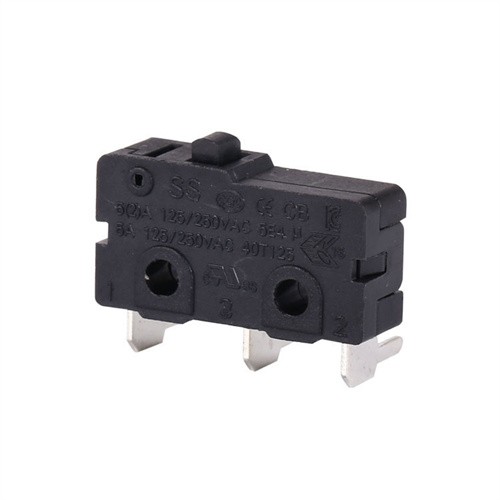

Right Angle Micro Switch

The 5A Right Angle Micro Switch is a compact, high-performance switch designed for reliable mechanical switching in a variety of applications. Featuring a right-angle actuator, this micro switch is particularly well-suited for environments where space constraints and precision are critical. The right-angle configuration allows the switch to be mounted easily on a printed circuit board (PCB) or in confined spaces, while still delivering a high level of performance and durability.

Micro switches, also known as snap-action switches, are widely used for their ability to provide rapid and precise switching action, often requiring only a small mechanical movement to change the state of the internal contacts. The 5A Right Angle Micro Switch offers the ideal balance of compact design, dependable switching, and high current handling capabilities, making it suitable for a broad range of consumer electronics, automated systems, safety circuits, and industrial applications.

In this article, we will explore the key features, technical specifications, and typical applications of the 5A Right Angle Micro Switch, highlighting its versatility, durability, and performance in various industries.

Key Features of the 5A Right Angle Micro Switch

1. Right-Angle Actuator Design:The right-angle actuator is the defining feature of this micro switch. This design allows the switch to be mounted at a 90-degree angle to the PCB, making it ideal for applications where space is limited or when a horizontal or vertical mounting orientation is required. The right-angle mounting ensures that the switch can fit into tight spaces or align with other components, making it especially useful in compact electronic devices and automated systems.

2. Snap-Action Mechanism:Like other micro switches, the 5A Right Angle Micro Switch uses a snap-action mechanism. When the actuator is triggered, the internal contacts move quickly and decisively, ensuring a rapid transition between open and closed states. This quick action minimizes contact bounce, which helps reduce electrical noise and ensures consistent performance in both low- and high-frequency switching operations.

3. Current Rating:The 5A Right Angle Micro Switch typically has a current rating of 5A at 125V AC or 250V AC and is also suitable for DC circuits (typically up to 3A at 12V DC or 24V DC). This current rating provides versatility, allowing the switch to be used in low to medium power applications, from household appliances to industrial machinery and control circuits. The switch’s ability to handle both AC and DC currents makes it adaptable for a wide range of systems.

4. Compact Size:The 5A Right Angle Micro Switch is compact and features a small form factor, making it an excellent choice for applications where space-saving is crucial. The compact size of the switch enables easy integration into small electronic assemblies without taking up valuable board space, ensuring more efficient designs and reducing the need for bulky switching components.

5. High Mechanical Life:Designed for long-term durability, this micro switch is engineered to endure up to 1 million mechanical cycles or more. Its high mechanical life ensures that it can be used in high-frequency switching applications, such as control panels, safety circuits, and automated systems, without the need for frequent replacements. The longevity of the switch reduces downtime and maintenance costs.

6. Tactile Feedback:The actuator provides clear tactile feedback when the switch is activated, making it easier for users to detect when the switch has been triggered. This feature is particularly useful in applications where confirmation of actuation is required, such as keypads, control systems, and safety devices.

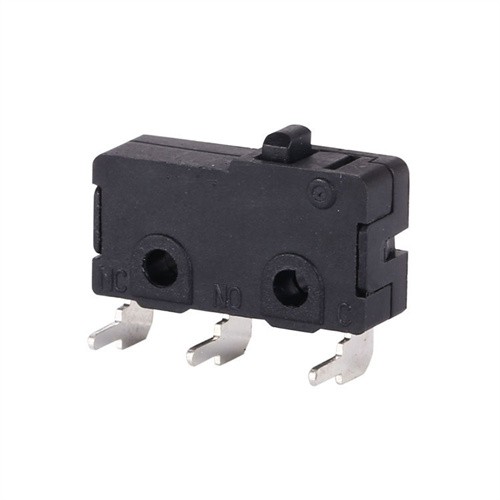

7. Easy Mounting and Integration:The right-angle terminals are designed for easy through-hole mounting directly onto a PCB. This mounting method ensures a secure and stable connection, preventing the switch from loosening during operation. The terminals can be easily soldered into place, providing a reliable mechanical and electrical connection that enhances the overall stability of the switch in the system.

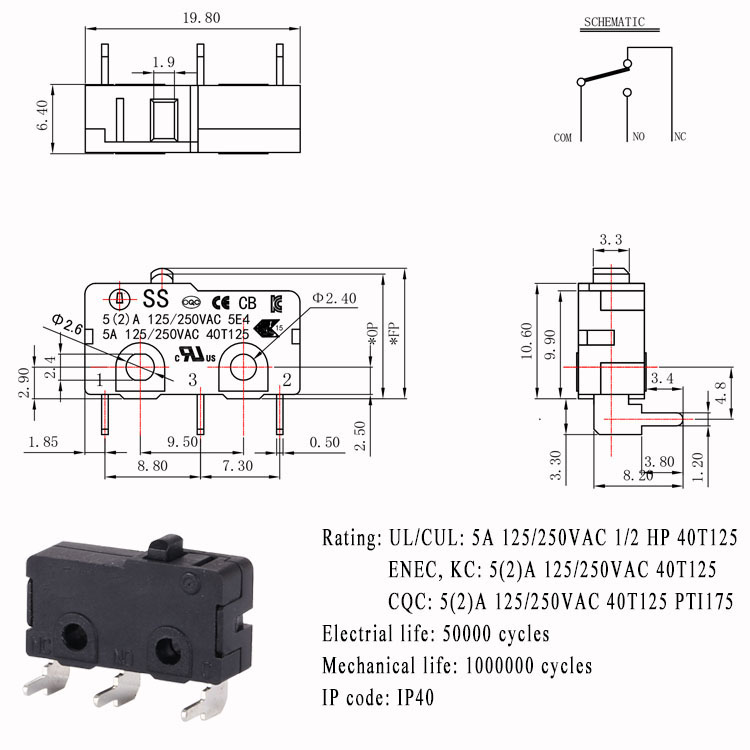

PRODUCT DIMENSION
