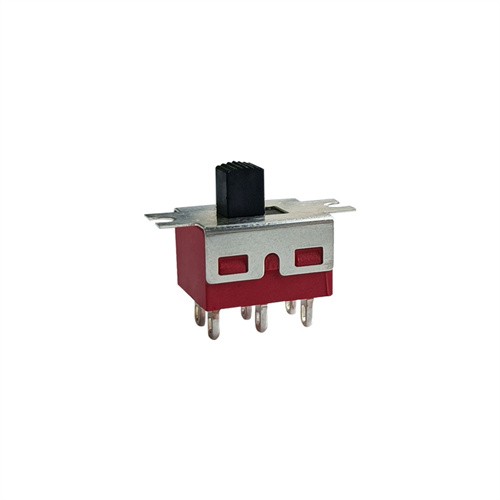

Slide Switch 6 Pin

The MINI slide switch with 6 pins or terminals is a type of electromechanical switch that allows for the connection and disconnection of circuits. It is a smaller version of the traditional slide switch, making it ideal for compact electronic devices or applications with limited space.

The 6-pin configuration provides more flexibility in terms of wiring options and can handle different types of circuits or signals. The switch has three positions—ON, OFF, and ON—allowing for a simple yet effective way to control the flow of electrical current.

The switch consists of a sliding lever that moves between two rows of pins. When the lever is in the ON position, electrical contact is established between one set of pins, while the other set is disconnected. Conversely, when the switch is in the OFF position, the pins are all disconnected. The third position, ON, connects a different set of pins, allowing for multiple levels of control or switching options.

The MINI slide switch with 6 pins can handle a range of currents, typically from a few milliamps up to several amps. They can also handle various voltages, making them suitable for a wide range of electronic and electrical applications.

Examples of applications where this switch can be used include consumer electronics, automation systems, robotics, and industrial control systems. It can also be used for controlling lighting circuits, motors, and other electrical devices.

Overall, the MINI slide switch with 6 pins is a versatile and reliable switch that can be used in various applications where compact size and limited space are essential. Its flexibility in wiring options makes it a popular choice among electronic hobbyists, makers, and professionals alike.

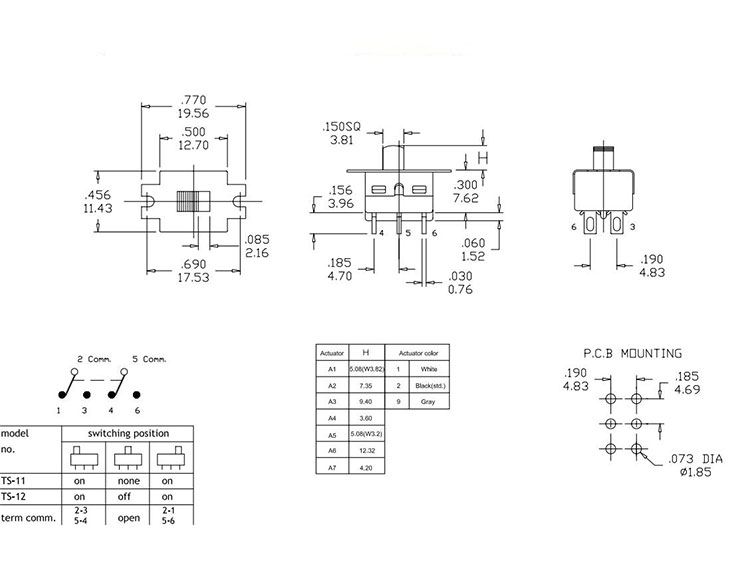

PRODUCT DIMENSION
