Tactile Switch PCB

A tact switch, also known as tactile switch or push-button switch, is a type of switch that is commonly found on electronic devices such as smartphones, calculators, and remote controls. It is a small, momentary switch that requires very little force to activate, making it ideal for applications where space is limited or where the user needs to make quick selections.

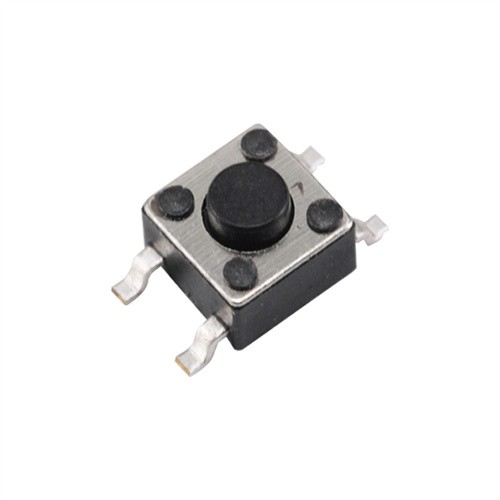

One of the most popular types of tact switch is the surface mount tact switch that measures 4.5x4.5mm. This switch is mounted directly onto the surface of the printed circuit board (PCB) using SMT (Surface Mount Technology) techniques. This technique involves placing the switch onto a solder paste that has been applied to the PCB and then heating the PCB to a temperature that melts the solder and secures the switch in place.

The 4.5x4.5mm SMT tact switch has a low profile and a small footprint, making it ideal for applications where space is at a premium. The switch is also very reliable, with a long lifespan of up to 500,000 cycles, and is resistant to vibration and shock. Additionally, it has a tactile feedback that provides users with a positive response when the switch is activated, ensuring that they know their input has been registered.

Another advantage of the 4.5x4.5mm SMT tact switch is that it can be customized to meet specific requirements. This includes options such as alternate actions, different operating forces, and varying contact materials. Depending on the application, the switch can be configured to provide either a momentary or latching action, with the latter requiring a second press to deactivate.

The 4.5x4.5mm SMT tact switch is a versatile and reliable component that is widely used in electronic devices. Its small form factor, low profile, and high durability make it ideal for applications where space is at a premium and where users require a tactile response. With its customizable options, it can be tailored to meet specific requirements, ensuring that it is an essential component in many modern electronic systems.

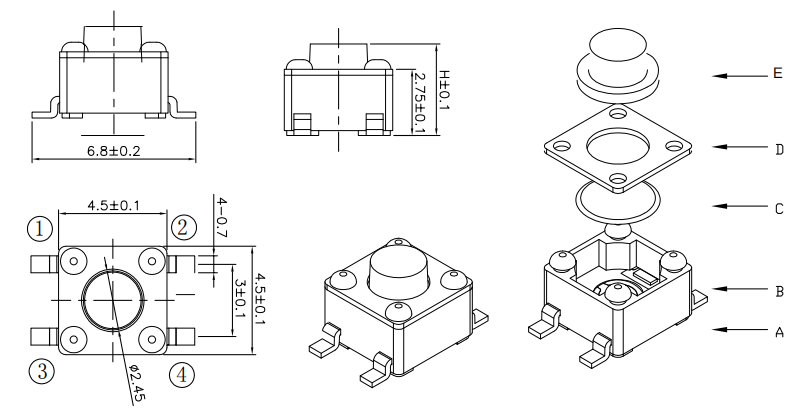

PRODUCT DIMENSION

PRODUCT CATEGORY

Illuminated Tactile switches, button switches, toggle switches, rocker switches, slide switches, microswitches, sockets and connectors, as well as hardware stamping and plastic injection.

applications

Application areas of the 4.5x4.5mm SMT tact switch include telecommunications, industrial equipment, consumer electronics, and automotive electronics. In telecommunications, it is used in mobile devices, fiber optic networks, and satellite communication systems. In industrial equipment, it is used in control panels, safety switches, and automation systems. In consumer electronics, it is used in remote controls, gaming devices, and wearables. In automotive electronics, it is used in dashboard controls, infotainment systems, and safety systems.

cOMPANY INFO

Rucoe Electronics is a leading manufacturer of illuminated switches which was established in 2013，our office is located in Shenzhen, and our factory in Dongguan which names Dongguan FVWIN Electronics Co.,Ltd. We provides high quality, high precision switches.with Innovative, Good quality management philosophy, strive hard to improve product design, tooling, injection molding technology, our product include in illuminated tact switch, push button switch, toggle switch, rocker switch, slide switch, DIP switch, wafer terminal ,AC & DC socket and connectors.

OUR EXHIBITIONS

EQUIPMENT

We have horizontal injection molding machine,punching machine,vertical milling machine,life tester,insulation resistance tester,salt spray tester,load curve meter,laser engraving machine.

CERTIFICATIONS

Rucoe meets its customers' highest demands through certified quality, environmental and safety management systems;we also offer OEM and ODM etc strategic customized service.
