Three Position Rocker Switch

A three-position rocker switch is a type of electrical switch that has a rocker-like mechanism that can be moved in three different directions. It is commonly used in electronic devices and appliances to control the flow of electricity or to switch between different functions.

The design of a typical three-position rocker switch consists of a rectangular base and a rocker-like mechanism that pivots around a central axis. The switch has three different positions or states: off, on, and in some cases, a third position which can be used for additional functions.

The off position of the switch means that there is no flow of electricity as the circuit is open. This is often indicated by a symbol on the switch or by a red indicator light. In the on position, the switch completes the circuit, allowing the flow of electricity to power the device or to turn on a specific function. This is indicated by a green indicator light or symbol.

The third position of a three-position rocker switch can vary depending on the device or appliance it is used in. For example, in a ceiling fan, the third position may change the direction of the fan blades. In a coffee maker, the third position may be used to turn on the heating element without starting the brewing process.

Three-position rocker switches can also be used with multiple circuits, allowing for more complex functions to be controlled. These types of switches are often found in heavy machinery, automotive applications, and industrial equipment.

When choosing a three-position rocker switch, it is important to consider factors such as the voltage and amperage ratings, the physical size and mounting style, and the number of circuits needed. It is also important to choose a switch that is durable and can withstand the environmental conditions it will be exposed to.

Overall, the three-position rocker switch is a versatile and reliable type of switch that is widely used in a variety of electronic devices and appliances. Its simple yet effective design makes it a popular choice for both commercial and residential applications.

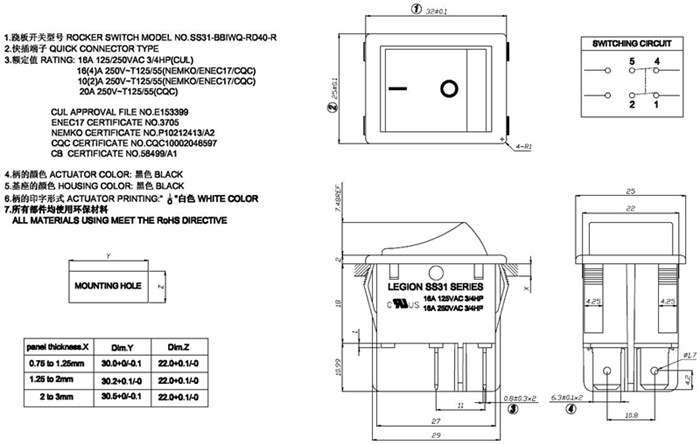

PRODUCT DIMENSION

PRODUCT CATEGORY

illuminated Tactile switches, button switches, toggle switches, rocker switches, slide switches, microswitches, sockets and connectors, as well as hardware stamping and plastic injection.

COMPANY INFO

Rucoe Electronics is a leading manufacturer of illuminated switches which was established in 2013，our office is located in Shenzhen, and our factory in Dongguan which names Dongguan FVWIN Electronics Co.,Ltd. We provides high quality, high precision switches.with Innovative, Good quality management philosophy, strive hard to improve product design, tooling, injection molding technology

OUR EXHIBITIONS

EQUIPMENT

We have horizontal injection molding machine,punching machine,vertical milling machine,life tester,insulation resistance tester,salt spray tester,load curve meter,laser engraving machine.

CERTIFICATIONS

Rucoe meets its customers' highest demands through certified quality, environmental and safety management systems;we also offer OEM and ODM etc strategic customized service.
