How do you tell if a DIP switch is on or off?

A DIP switch, short for Dual Inline Package Switch, is a small electronic component that functions as an on/off switch for electrical circuits. These switches are typically used in electronic devices and can be found on circuit boards, motherboards, and other types of electronic equipment. It is important to understand how to tell if a DIP switch is on or off to properly configure or troubleshoot electronic devices.

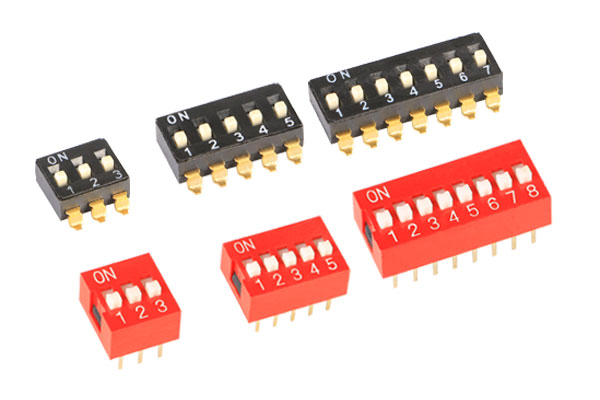

DIP switches come in various sizes and shapes, but they all have the same basic design. They consist of a row of small switches that can be set to either an on or off position. When the switch is in the on position, it completes the connection between two pins on a circuit board. When the switch is in the off position, the connection is broken, and the circuit is open.

To tell if a DIP switch is on or off, you need to look for the position of the switch. Each switch typically has two positions—a raised position and a lowered position. If the switch is in the raised position, it is in the on position. This means that the connection is complete, and the circuit is closed. If the switch is in the lowered position, it is in the off position. This means that the connection is broken, and the circuit is open.

It is important to note that some DIP switches may have a different design, and the positions of the raised and lowered switches may vary. To determine which position is on or off for a specific switch, consult the device's manual or contact a professional for assistance.

In conclusion, understanding how to tell if a DIP switch is on or off is essential when configuring or troubleshooting electronic devices. By identifying the position of the switch, you can determine whether the circuit is closed or open, and make the necessary adjustments to ensure proper functionality.
