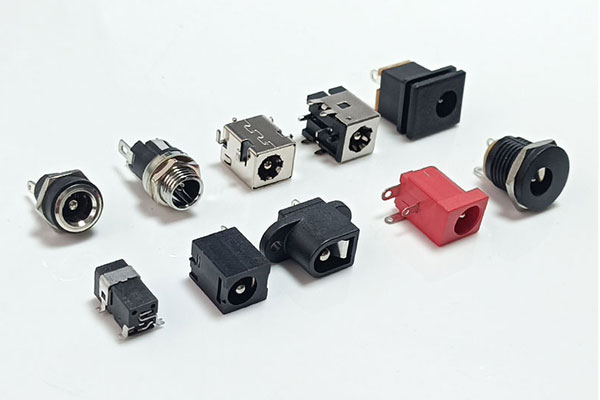

How to identify a DC jack?

Identifying a DC jack involves examining its physical dimensions, electrical specifications, and often its usage context. Here’s a step-by-step guide to help you identify a DC jack:

 To accurately identify a DC jack, measure its physical dimensions, check its voltage and current ratings, determine the polarity, and consider the context of its use. This careful examination ensures compatibility and proper functionality with your electronic devices

1. Physical Dimensions:

Outer Diameter (OD): Measure the outer diameter of the jack using a caliper. Common sizes include 5.5mm, 4.0mm, and 2.5mm.

Inner Diameter (ID): Measure the inner diameter of the pin inside the jack. This can also be done with a caliper. Common sizes include 2.1mm, 1.7mm, and 0.7mm.

Length: Measure the length of the jack barrel to ensure it matches the socket depth on the device.

2. Electrical Specifications:

Voltage Rating: Check the voltage rating, which is often indicated near the jack or in the device’s user manual. Common voltages are 5V, 12V, and 19V.

Current Rating: Determine the current rating, usually specified in amperes (A). This information can typically be found in the device's specifications or on the power adapter.

Polarity: Identify the polarity of the jack. Most DC jacks have a positive center pin, but it’s essential to verify this. Look for polarity markings on the device or power adapter, often depicted as (+) for positive and (−) for negative

3. Context and Application:

Device Type: Consider the type of device the DC jack is used for. Consumer electronics, laptops, and handheld devices often use standard sizes like 5.5mm x 2.1mm.

Manufacturer Specifications: Refer to the device’s user manual or technical specifications sheet for exact details on the DC jack type and size.

4. Visual Inspection:

Shape and Design: Note the design features such as whether the jack is a straight or right-angle type, and if it has any additional locking mechanis
