How to install the metal button switch

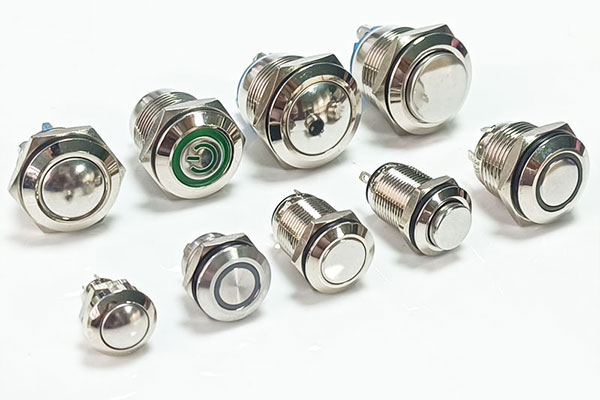

If you are new to installing a metal push button switch, the process might seem complex, but it can be broken down into simple, manageable steps. Metal push button switches are versatile components used in a wide range of applications, from industrial control panels to consumer electronics. Here’s a step-by-step professional guide to help you install a metal push button switch effectively, ensuring proper functionality and safety.

1. Gather Necessary Tools and Materials

Before beginning the installation, gather all the necessary tools and materials. You will need:

• The metal push button switch itself

• A drill or hole saw (appropriate size for the switch)

• Screwdrivers (Phillips or flathead, depending on the switch)

• Wires (for connecting the switch to the circuit)

• Wire strippers

• Soldering iron (if solder connections are required)

• Multimeter (to test the connection and ensure it’s working correctly)

• Electrical tape or heat shrink tubing (for insulation)

Ensure that the metal push button switch is compatible with your system’s voltage and current ratings before proceeding.

2. Plan the Installation Location

Choose the location where you want to install the switch. If you are installing it in a panel, ensure there is enough space both on the front and behind the panel for the switch body and wiring. Metal push button switches come in various sizes, typically measured in millimeters (e.g., 16mm, 19mm, 22mm), so make sure the hole size matches the switch diameter.

3. Drill the Mounting Hole

Once you’ve decided on the installation location, it’s time to drill a hole for the switch. Most metal push button switches require a circular hole in the panel. Use a hole saw or drill bit that corresponds to the diameter of the switch. Ensure the hole is clean and free of debris after drilling.

4. Insert and Secure the Switch

Insert the switch into the hole, ensuring the button sits flush with the panel. Most metal push button switches come with a locking nut that screws onto the back of the switch to secure it in place. Use your hand or a wrench to tighten the nut securely, ensuring the switch doesn’t move when pressed.

5. Wire the Switch

Wiring is the most critical step of the installation process. The back of the switch will have a set of terminals for connecting wires. Common terminal types include:

• NO (Normally Open): The circuit is open until the button is pressed.

• NC (Normally Closed): The circuit is closed until the button is pressed.

• COM (Common): The shared terminal for both NO and NC.

To connect the wires, use a screwdriver to loosen the terminal screws, insert the stripped wire ends, and tighten the screws to hold them securely in place. If the switch requires solder connections, use a soldering iron to carefully solder the wires onto the terminals, and apply heat shrink tubing or electrical tape to insulate the connections.

6. Test the Switch

Once the wiring is complete, test the switch using a multimeter to ensure it’s working correctly. Check for continuity in the circuit when the button is pressed and released. If the switch is illuminated, verify that the LED lights up as expected.

7. Complete the Installation

Once you have tested the functionality, you can finalize the installation. Tidy up the wiring by securing the wires with cable ties or mounting clips to keep them organized and prevent them from getting damaged. Ensure all connections are properly insulated and that the switch is securely mounted.

8. Safety Considerations

Always follow proper safety protocols when working with electrical components. Ensure the power is off before wiring the switch to prevent electric shock. Verify that the switch is rated for the voltage and current of your application to avoid overloading the circuit, which can lead to malfunction or fire hazards.

Installing a metal push button switch is a straightforward process if you follow these steps carefully. With the right tools, proper planning, and attention to detail, you can successfully install the switch and ensure it operates safely and reliably in your system.
