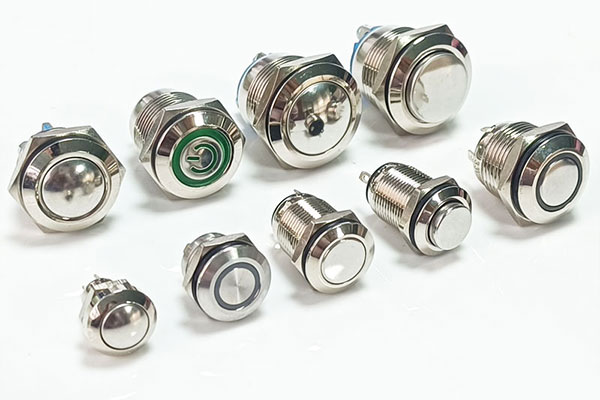

Momentary Metal Pushbutton

The Momentary Metal Pushbutton described is an excellent choice for applications requiring a robust and reliable switch. This button is designed for heavy-duty use, combining durability with a compact size, making it suitable for a wide range of applications. Below is a detailed overview of its features, specifications, and potential uses.

This Momentary Metal Pushbutton is a perfect choice if you are in need of a heavy-duty push-button. These metal push buttons are very tough, small, panel-mount Momentary switches with an illuminated White LED Ring symbol. It is an SPST with 12mm threading. This button is perfect for basic On/Off functions. The overall length (including leads) is 1.5" and has small solder lugs for connection. These Momentary buttons are rated up to 3A and 250VAC while the LED is rated for 3V-6V. Note: We can carefully manufacture this switch with the best quality contacts, springs, and metal cases. This is not a low-cost switch with false output ratings. Use only ProMax Industrial grade switches for the best quality and life. The Indication LED has its own 2 Pins, it can be turned on by 3V-6V Power and can be controlled independently from the switch. This is SPST Single pole switch with  C, NO, and NC terminals. This allows you to control up to 1 device or load wires independently. If you use an SPST switch for input power or battery power input you can switch live power wire using this switch for power isolation when the switch is off.

Key Features and Specifications

1. Durable Construction: Made from high-quality metal, these push buttons are designed to withstand harsh conditions and frequent use. The robust metal housing ensures long-term durability and resistance to physical impacts.

2. Compact Size: Threading: 12mm threading for easy panel mounting. Overall Length: 1.5 inches, including leads, making it a compact choice for tight spaces.

3. Momentary Action:

This switch is a momentary type, meaning it only remains active while being pressed. Once released, it returns to its default position. This feature is ideal for temporary operations such as triggering a device or resetting a system.

4. Electrical Ratings:Current and Voltage: Rated up to 3A and 250VAC, making it suitable for various low to moderate power applications.

LED Rating: The integrated white LED ring symbol is rated for 3V-6V, providing a clear visual indication of the switch's status.

5. Illuminated LED Ring: The button features an illuminated white LED ring, enhancing visibility and providing a modern, professional appearance. The LED can be controlled independently from the switch, allowing flexibility in design and functionality.

6. SPST Configuration: Single Pole Single Throw (SPST): This switch has one common terminal (C) and one normally open (NO) terminal. It also includes normally closed (NC) terminals for additional control options.

7. This configuration allows for simple on/off control of a device or load, suitable for basic power switching needs.

8. Connection Terminals:The switch includes small solder lugs for easy connection. These terminals are designed for reliable and secure electrical connections.

9. Independent LED Control:The LED has its own two pins, enabling it to be powered by 3V-6V independently of the switch. This feature allows the LED to be used for status indication or other visual feedback without affecting the switch's operation.

The Momentary Metal Pushbutton is a high-quality, durable switch that combines functionality with a sleek design. Its heavy-duty metal construction, compact size, and reliable momentary action make it suitable for a wide range of applications. With electrical ratings up to 3A and 250VAC, and an illuminated white LED ring for visual feedback, this switch is both versatile and reliable. The SPST configuration with independent LED control adds flexibility, making it an excellent choice for consumer electronics, automotive, industrial, and home automation applications. For those seeking a robust and dependable switch, the Momentary Metal Pushbutton from ProMax Industrial grade ensures the best quality and longevity.
