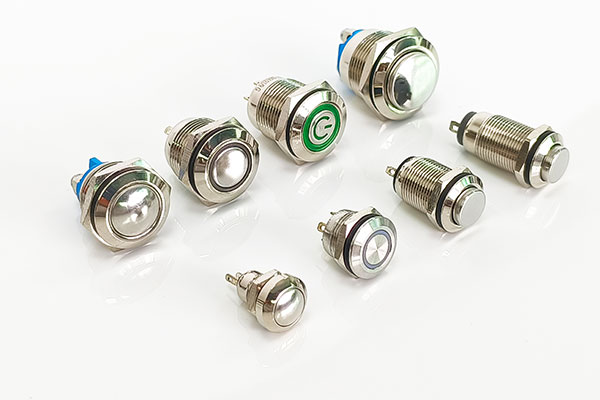

Terminal Forms of Metal Push Button Switches

Metal push button switches are integral components in various industrial, consumer, and electronic applications. One of the most critical aspects of these switches is the form of their terminals, as this dictates how they are connected to the electrical circuit and their compatibility with different systems. The terminal form refers to the type of electrical connection that the switch has, which impacts installation, performance, and maintenance. Understanding the different terminal forms available is crucial for ensuring the proper functioning of metal push button switches in any application.

1. Screw Terminals

Screw terminals are one of the most common and versatile terminal types used in metal push button switches. These terminals are designed to secure wires or leads by clamping them between a metal screw and a pressure plate.

• Advantages:

• Secure Connection: Screw terminals provide a reliable and solid connection, ensuring a secure grip on the wire and minimizing the risk of disconnections.

• Ease of Maintenance: It’s easy to replace or rewire a switch with screw terminals, making them ideal for applications that require frequent servicing.

• Wide Compatibility: Screw terminals are compatible with a variety of wire types, including solid, stranded, and flexible cables.

• Applications: Screw terminals are typically used in industrial control systems, power equipment, and applications where long-term durability and easy servicing are needed.

• Considerations: While screw terminals offer strong connectivity, they require the use of tools (typically a screwdriver) for installation, which may not be as convenient for high-volume assembly lines.

2. Solder Terminals

Solder terminals, also known as soldering lugs or pins, are another popular terminal form found in metal push button switches. These terminals have a metal post or lug that allows for the wire to be directly soldered onto the terminal.

• Advantages:

• Permanent Connection: Soldering provides a permanent and very secure connection between the wire and terminal, reducing the risk of loose connections.

• Compact Design: Solder terminals are ideal for space-constrained applications, as they tend to be more compact than screw terminals.

• Low Resistance: Soldering provides a low-resistance connection, which is important for high-performance applications.

• Applications: Solder terminals are commonly used in applications where the switch will not be subject to frequent re-wiring, such as in custom electronics, circuit boards, or when embedding switches in sealed devices.

• Considerations: The main drawback of solder terminals is that they require more time and skill to install compared to screw terminals. Additionally, once the wires are soldered, it is challenging to make changes without redoing the soldering process.

3. Quick Connect Terminals (Spade or Faston Terminals)

Quick connect terminals, also known as Faston or spade terminals, are designed for quick and tool-free wire connections. These terminals are shaped like a flat tab and are inserted into corresponding connectors that grip the tab securely.

• Advantages:

• Quick Installation: These terminals allow for fast and tool-free connection, making them ideal for mass production or applications where quick replacement is needed.

• Reusability: Quick connect terminals can be easily disconnected and reconnected, which is useful in applications where switches need to be serviced or replaced frequently.

• Reduced Labor Costs: Because of their ease of installation, quick connect terminals help reduce labor costs and installation time.

• Applications: Faston terminals are commonly used in consumer electronics, appliances, automotive applications, and other systems where frequent disconnection and reconnection of switches are necessary.

• Considerations: The connection may not be as secure as screw or solder terminals, especially in environments with vibration or physical stress, where the terminals may loosen over time.

4. Blade Terminals

Blade terminals are similar to spade connectors but are typically used for larger current ratings and in industrial applications. These terminals feature a rectangular metal blade that fits into a matching connector.

• Advantages:

• High Current Capacity: Blade terminals can handle higher currents than spade or quick connect terminals, making them suitable for high-power applications.

• Secure and Stable: The blade design ensures a stable connection, particularly in environments with vibration or shock.

• Applications: Blade terminals are often found in heavy-duty machinery, electrical control panels, and automotive systems where high current and reliable connections are needed.

• Considerations: While blade terminals provide excellent electrical conductivity, they often require specific connectors that match their size and shape, so they may not be as universally compatible as other terminal forms.

5. PC Pins (Printed Circuit Board Pins)

Printed Circuit Board (PCB) pins, also known as through-hole pins, are designed for mounting directly onto a printed circuit board. These terminals have pins that can be inserted through holes in the PCB and soldered in place.

• Advantages:

• Compact and Efficient: PCB pins are ideal for applications where space is limited and the switch is integrated into a custom-built circuit board.

• Strong Electrical Contact: When properly soldered, PCB pins provide a very strong and low-resistance electrical connection.

• Automated Assembly: For mass production, PCB pins allow for automated placement and soldering, reducing labor costs.

• Applications: These terminals are common in custom electronic devices, embedded systems, and consumer products like amplifiers, audio equipment, and control panels.

• Considerations: PCB pins are not suitable for high-power applications due to their relatively low current handling capabilities. Additionally, once the switch is mounted, rework or modifications can be difficult.

6. Snap-in Terminals

Snap-in terminals are designed for quick assembly without requiring tools or screws. These terminals typically feature clips or hooks that allow the switch to "snap" into place, making installation fast and secure.

• Advantages:

• Quick and Easy Installation: Snap-in terminals are designed for fast assembly and can be used in automated systems to speed up production processes.

• Cost-Effective: The simplicity of snap-in terminals helps reduce the overall cost of manufacturing and assembly.

• Applications: Snap-in terminals are commonly used in consumer electronics and mass-produced devices where ease of installation and cost-effectiveness are key factors.

• Considerations: While they are cost-effective and convenient, snap-in terminals may not provide the same level of security or robustness as screw or solder terminals in environments with vibration or high mechanical stress.

Understanding the various terminal forms for metal push button switches is crucial for selecting the right switch for your application. Each type of terminal offers its own set of advantages and is suited to different environments and needs. From screw terminals for secure, long-term connections to quick-connect terminals for fast, tool-free installations, there is a terminal form to suit nearly every requirement. Whether the priority is durability, ease of maintenance, space-saving, or quick assembly, choosing the right terminal form ensures optimal performance, safety, and reliability in any system. By considering the specific needs of the application—whether in industrial machinery, consumer products, or specialized electronics—you can make an informed decision that best meets your electrical and mechanical requirements.
