The Ultimate Guide of Metal Push Button Switch

Metal push button switches are an essential component in many industries due to their durability, tactile feedback, and aesthetic appeal. These robust, reliable switches are used in a variety of applications, from controlling machinery in industrial environments to serving as user interfaces in consumer electronics. This guide will cover the key features, benefits, and considerations when using metal push button switches, providing you with a comprehensive understanding of their functionality and advantages.

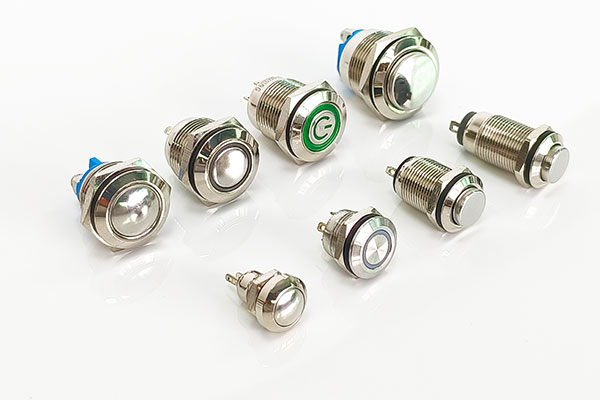

What Are Metal Push Button Switches?

A metal push button switch is a type of electrical switch designed to control the flow of electricity in a circuit. Unlike plastic switches, which may be prone to wear and tear, metal push buttons are made from strong materials such as stainless steel, aluminum, or brass, offering superior durability and a premium aesthetic. These switches are typically used for user interface applications in devices and systems where tactile feedback, high strength, and corrosion resistance are crucial.

Key Components of a Metal Push Button Switch

A metal push button switch generally consists of several important components:

• Button Housing: The outer shell, typically made from stainless steel, aluminum, or brass, which provides the switch with its durability and resistance to physical stress.

• Actuator: The part of the switch that the user presses. It is often a metal dome or plunger that moves to make or break an electrical connection when actuated.

• Contact Mechanism: Inside the switch, electrical contacts are activated when the actuator is pressed, completing the circuit.

• LED Indicator (Optional): Many metal push button switches have integrated LEDs for visual feedback, allowing users to see when the switch is engaged or in a specific mode.

• Mounting Hardware: This includes screws, nuts, or threaded elements that allow the switch to be mounted securely in panels, dashboards, or enclosures.

Types of Metal Push Button Switches

Metal push button switches come in various configurations, designed to meet specific user needs. Some of the common types include:

• Momentary Switches: These switches are activated only when the user presses them. Once released, the switch returns to its default position. Momentary switches are commonly used for functions like turning devices on or off or initiating a temporary action.

• Latching Switches: Latching switches stay in the "on" or "off" position after they are pressed and remain in that state until pressed again. These switches are ideal for applications like toggling between different modes or keeping a system running.

• Illuminated Push Buttons: Many metal push button switches feature integrated LEDs that light up when the switch is pressed, providing clear visual feedback. These switches are ideal for low-light environments or for indicating status changes in systems.

• Anti-Vandal Switches: Designed for outdoor and high-traffic environments, anti-vandal metal push button switches are built to withstand tampering, physical abuse, and extreme environmental conditions.

Benefits of Metal Push Button Switches

There are several significant advantages to using metal push button switches in various applications:

1. Durability: Metal push buttons are resistant to wear, corrosion, and physical stress, making them perfect for environments with heavy use, exposure to harsh chemicals, or outdoor conditions. Materials like stainless steel and aluminum are chosen for their high strength and long lifespan.

2. Tactile Feedback: Metal push button switches provide distinct, satisfying tactile feedback when pressed, giving users a clear indication that the switch has been engaged. This feedback is essential in critical applications where precise control is necessary.

3. Aesthetic Appeal: The sleek, polished look of metal push buttons enhances the design of consumer products, industrial equipment, and control panels. Stainless steel, brass, and aluminum can be finished with different textures, such as brushed, polished, or matte, to suit various design preferences.

4. Weather and Environmental Resistance: Metal push buttons are more resilient to temperature fluctuations, moisture, dust, and UV light than plastic alternatives. This makes them ideal for outdoor applications, industrial control panels, and environments with extreme conditions.

5. High Current Handling: Metal push button switches are typically designed to handle higher currents compared to plastic switches, making them suitable for heavy-duty applications where high-power circuits need to be controlled.

6. Safety Features: Many metal push buttons are equipped with safety features such as IP ratings for water and dust resistance, and anti-vandal designs to prevent unauthorized tampering or accidental activation.

Applications of Metal Push Button Switches

Metal push button switches are used in a wide range of industries and applications:

• Industrial Control Panels: Metal push buttons are commonly used in factory settings, where they control machinery, emergency stops, or process triggers. They are built to withstand high-frequency use and harsh working conditions.

• Automotive Controls: In vehicles, metal push buttons control functions such as ignition, seat adjustments, and lighting systems. Their tactile feedback and durability make them a favorite for use in cars, trucks, and heavy-duty vehicles.

• Consumer Electronics: Many high-end consumer electronics, such as audio equipment, smart home devices, and gaming consoles, incorporate metal push button switches. They offer a tactile and aesthetic experience that appeals to users.

• Outdoor and Public Use: Metal push button switches are ideal for public-facing kiosks, street lighting systems, and public transportation controls. They are resistant to tampering and environmental exposure, ensuring reliable performance.

• Medical Equipment: In medical devices, metal push buttons are used for essential functions like turning equipment on or off, adjusting settings, or controlling alarms. Their reliability and resistance to contamination make them well-suited for healthcare environments.

Considerations When Choosing Metal Push Button Switches

When selecting a metal push button switch, consider the following factors to ensure you choose the best option for your application:

1. Environmental Conditions: Consider factors such as exposure to moisture, chemicals, and temperature extremes. Choose a switch with the appropriate IP rating (Ingress Protection) to ensure it can withstand these conditions.

2. Actuation Type: Determine whether a momentary or latching switch is best suited for your application. Momentary switches are ideal for temporary actions, while latching switches are used when the switch needs to stay in the on or off position.

3. Size and Mounting: Choose a switch that fits the design and space constraints of your device or control panel. Metal push buttons come in various sizes, with options for panel-mounting, surface-mounting, or through-hole mounting.

4. Electrical Specifications: Ensure that the switch is rated to handle the current and voltage requirements of your circuit. Metal push buttons are available in various current ratings to accommodate both low- and high-power applications.

5. Aesthetic and Finish: The appearance of the metal push button can contribute to the overall design of the product. Consider the finish (brushed, polished, matte) and material (stainless steel, aluminum, brass) based on the aesthetic preferences of your project.

Metal push button switches are integral components in many electronic, industrial, and consumer applications. They offer a range of benefits, including durability, tactile feedback, and aesthetic appeal, making them the preferred choice in environments where reliability and user experience are paramount. With their wide variety of types and applications, metal push button switches are designed to meet the demands of nearly any industry, from heavy-duty machinery to stylish consumer electronics. By understanding the key features, benefits, and considerations of these switches, you can select the right solution for your needs, ensuring safe, reliable, and efficient operation.
