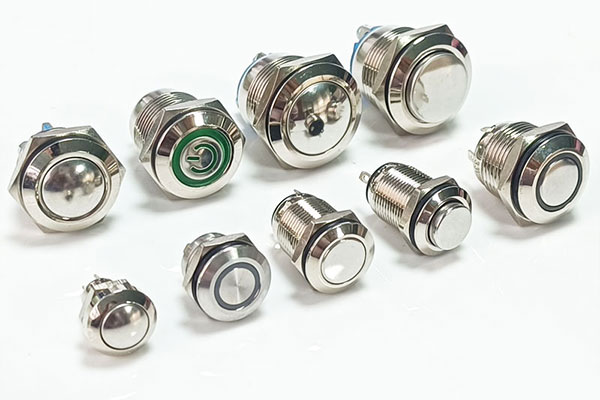

A momentary metal push button switch is a robust and versatile electrical component designed to temporarily activate a circuit when pressed. Unlike latching switches that remain in the "on" or "off" position until manually changed, momentary switches only maintain their state while the button is being pressed. This functionality makes them suitable for various applications requiring temporary activation or control.
Construction and Materials
Body and Actuator:
Material: The switch is typically constructed from durable metals such as stainless steel or aluminum. These materials provide resistance to mechanical stress, corrosion, and environmental factors, ensuring a long operational life even in demanding conditions.
Actuator: The actuator, or button, can have different designs such as raised, flush, or slightly recessed. A raised actuator is commonly used for its tactile feedback, allowing users to feel when the switch is engaged.
Mounting:
Size: The switch generally fits into a standard mounting hole size, such as 19mm, making it compatible with various panel designs.
Panel Mounting: The switch is installed by inserting it through a drilled hole in the panel and securing it with a nut on the back. This mounting method provides a secure and stable fit.
Electrical Specifications
Voltage and Current Ratings:
Voltage Rating: Momentary metal push button switches are commonly rated for low voltages, such as 12V or 24V DC. However, specific models can handle higher voltages depending on their design and intended application.
Current Rating: The switch typically supports currents ranging from 2A to 5A. This makes it suitable for controlling circuits with moderate power requirements.
Contact Configuration:
SPST (Single Pole Single Throw): The most common configuration for momentary switches, providing a simple on/off function with two terminals. The circuit is completed only while the button is pressed.
SPDT (Single Pole Double Throw): Allows the switch to connect one common terminal to one of two other terminals. This configuration can switch between two different circuits or states when the button is pressed.
Functionality and Operation
Momentary Action:
Temporary Activation: The primary function of a momentary switch is to activate a circuit only while the button is being pressed. Once released, the switch returns to its default state, making it ideal for functions that require temporary control or triggering.
Applications: Commonly used for tasks such as starting machinery, triggering alarms, or activating temporary functions where continuous control is not needed.
Feedback:
Tactile Response: Many momentary metal push button switches provide tactile feedback, such as a noticeable click or bump, to let users know when the switch is engaged. This feedback improves user experience by confirming that the switch has been activated.
Environmental Protection
Weather and Vandal Resistance:
IP Rating: Many models are designed with IP67 or higher ratings, indicating protection against dust and water ingress. This makes them suitable for outdoor or industrial environments where exposure to moisture and debris is common.
Temperature Range: The switch can operate within a specified temperature range, such as -20°C to 55°C, ensuring reliable performance in varying environmental conditions.
Applications
Industrial Controls:
Machinery and Equipment: Used in control panels for machinery where temporary activation is required. The durable construction ensures reliability even in harsh industrial environments.
Consumer Electronics:
Devices and Appliances: Integrated into consumer electronics where temporary functions, such as reset or mode changes, are needed. The tactile feedback helps users confirm activation.
Public Facilities:
Kiosks and ATMs: Employed in public-facing devices where vandal resistance and reliable performance are essential. The metal construction provides durability in high-traffic areas.
Automotive and Marine:
Vehicle and Boat Controls: Suitable for automotive and marine applications where a robust, weather-resistant switch is needed for temporary control functions.
Summary
The momentary metal push button switch is a durable and versatile component designed for temporary activation of electrical circuits. Its metal construction provides resilience against mechanical stress, corrosion, and environmental conditions. With a range of voltage and current ratings, tactile feedback, and various contact configurations, it is ideal for applications in industrial control panels, consumer electronics, public facilities, and automotive or marine environments. Its ability to provide reliable, temporary control makes it a valuable component in many electronic and electrical systems.
