What is the dc jack positive negative

In electronics, understanding the polarity of a DC jack is crucial to ensuring that power is supplied to a device correctly. A DC jack typically connects a power source, such as an adapter or battery, to a circuit or device. These jacks are commonly used in a wide range of consumer electronics, such as power adapters for laptops, audio equipment, and even DIY electronics projects. DC jacks come in several different configurations, and knowing which pin is positive and which is negative can prevent damage to your circuit or device. This article will explain the basic concepts of DC jack polarity, common configurations, and how to identify the positive and negative terminals.

1. Understanding the DC Jack

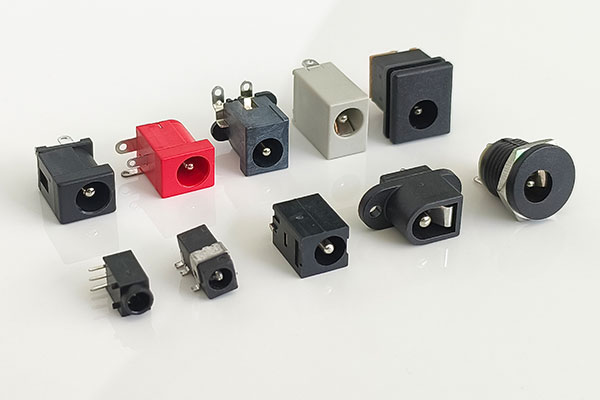

A DC jack generally consists of a cylindrical connector that has a central pin (the "inner" pin) and an outer ring (the "outer" sleeve). The inner pin connects to the positive terminal of the power supply, while the outer sleeve is connected to the negative or ground terminal. The purpose of this setup is to provide a safe and reliable way to connect a power source to an electronic device or circuit.

2. The Two Main Polarity Configurations

There are two common ways in which the positive and negative terminals are arranged on a DC jack:

a. Center Positive Configuration

In this configuration, the center pin (the inner part of the jack) is positive, and the outer sleeve (the outer ring) is negative. This is one of the most common configurations for DC jacks, especially in devices like portable electronics, some LED lights, and many power adapters for laptops. The polarity is marked on the device, typically with a plus (+) sign indicating the center pin is positive and a minus (-) sign indicating the outer ring is negative.

b. Center Negative Configuration

Less common but still prevalent, especially in some audio equipment and specialized devices, is the center negative configuration. In this setup, the inner pin is negative, and the outer sleeve is positive. While it is less frequently used than center positive, it is still important to ensure that you use the correct polarity to avoid damaging the device.

3. Why Polarity Matters

The correct polarity is vital for the operation of electronic devices. Incorrect polarity can lead to a number of issues, including:

• Short Circuits: Reversing the polarity of the power supply can cause a short circuit, which may damage the internal components of the device.

• Damage to Components: Sensitive components, such as capacitors and integrated circuits, may be permanently damaged by reversed polarity.

• Device Malfunction: Even if there is no immediate physical damage, using incorrect polarity can cause the device to malfunction or fail to turn on.

To avoid these issues, it’s essential to verify the polarity of your DC jack before connecting it to your power source.

4. How to Identify Positive and Negative on a DC Jack

There are several ways to identify the polarity of a DC jack:

a. Check the Markings

Many DC jacks will have labels or markings on the connector or device itself that indicate the polarity. Look for a plus (+) sign next to the center pin or a minus (-) sign next to the outer ring. These markings will tell you which side should be connected to the positive and negative terminals of the power supply.

b. Use a Multimeter

If no markings are visible, you can use a multimeter to test the polarity of the DC jack. Set your multimeter to measure DC voltage and place the red (positive) probe on the center pin of the jack and the black (negative) probe on the outer sleeve. If the multimeter shows a positive voltage, then the center pin is positive. If the voltage is negative, then the center pin is negative.

c. Look at the Power Supply

The power supply itself may have markings or a label indicating the polarity of the output. Some adapters use a diagram showing the positive and negative connection points. This can help you identify which way the plug should be oriented to match the polarity.

5. Standardized Barrel Connectors

Most DC jacks use standardized barrel connectors with specific sizes and configurations. The most common sizes are:

• 5.5mm x 2.1mm: This is a very popular size used in consumer electronics.

• 5.5mm x 2.5mm: Slightly larger than the 2.1mm version, this is often used for higher-current applications.

When selecting a DC jack and plug, it is essential to match both the size and polarity to avoid compatibility issues.

6. Polarity Reversal Protection

Some devices are equipped with built-in polarity reversal protection. This feature protects the device from damage if the polarity is connected incorrectly. For example, a diode in the power circuit can block reverse voltage, preventing damage to sensitive components. While polarity protection is useful, it is still a good practice to connect the power supply with the correct polarity.

7. Conclusion

The positive and negative terminals of a DC jack play an essential role in ensuring that your electronic device operates correctly. Most DC jacks follow either a center positive or center negative configuration, and understanding which one your device uses is crucial to avoid damage. By carefully checking the markings, using a multimeter, or referring to the power supply label, you can ensure that the device is connected with the correct polarity and is powered safely.
