How does a DC power jack work

A DC power jack is a type of electrical connector used to provide a direct current (DC) power supply to electronic devices. It functions by receiving electrical power from a power source, such as a battery or power adapter, and directing it into the device's internal circuitry. The DC power jack is a crucial component in numerous electronic applications, ranging from household appliances to complex industrial systems. In this article, we will explore how a DC power jack works, the different types of DC jacks, and how it connects to devices.

Basic Components and Operation of a DC Power Jack

A typical DC power jack consists of two main components: the center pin (tip) and the outer sleeve (barrel). These two parts are designed to connect to the corresponding terminals of a DC power plug, which delivers electrical power from a power supply to the device.

1. Center Pin (Tip): The center pin, which is often a metal contact located in the center of the jack, is the positive terminal of the DC jack. When a power plug is inserted into the jack, the center pin makes contact with the corresponding positive connection of the power supply, typically denoted as “+”. This is where the DC voltage from the power source enters the device.

2. Outer Sleeve (Barrel): Surrounding the center pin is the outer sleeve, which acts as the negative terminal or ground. The sleeve connects to the negative terminal of the power supply, typically denoted as “-”. The sleeve completes the electrical circuit by providing a return path for the current.

3. Insulation: The center pin and outer sleeve are usually separated by an insulating material to prevent short circuits between the positive and negative terminals. This insulation ensures that the power supply is correctly directed into the device without interference.

4. Spring-loaded Mechanism (in some cases): Many DC power jacks also feature a spring-loaded or mechanical mechanism that helps secure the power plug into place once it is inserted. This ensures a stable and reliable connection, preventing the plug from disconnecting during operation.

How a DC Power Jack Works

The basic function of a DC power jack is to allow electrical power to flow from an external power supply into the device, ensuring that the device receives the required voltage and current for operation. The process works as follows:

1. Power Supply Connection: The power supply, which could be a wall adapter, battery, or other DC power source, has a plug with a connector that matches the size and polarity of the DC jack. The plug typically has a center pin that connects to the positive terminal and a sleeve that connects to the negative terminal.

2. Insertion of the Plug: When the DC power plug is inserted into the jack, the tip (center pin) makes contact with the positive terminal of the jack, and the outer sleeve connects to the negative terminal. The plug is often designed to fit snugly into the jack, ensuring that the connections are secure and the power flows properly.

3. Power Delivery: Once the plug is fully inserted into the jack, the electrical power from the external supply flows through the jack’s terminals to the device. The positive voltage from the center pin powers the internal circuitry, while the return path through the outer sleeve allows the current to complete the circuit and return to the power supply.

4. Regulated Voltage: In many devices, the DC power jack is designed to work with a specific voltage and current range. The power supply connected to the jack is often regulated to ensure that the voltage and current match the needs of the device. Devices may include voltage regulators or protection circuits to prevent damage from power surges, overvoltage, or reverse polarity.

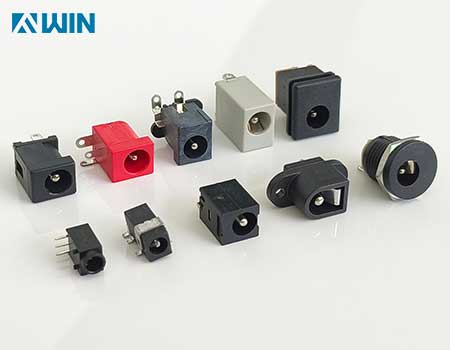

Types of DC Power Jacks

There are several different types of DC power jacks, each designed to serve specific purposes. The primary differences lie in the size of the jack, the polarity, and the method of mounting. Common types include:

1. Barrel Jacks: These are the most common type of DC jacks and are cylindrical in shape. The barrel jack has a central pin (tip) for the positive connection and a surrounding sleeve for the negative. Barrel jacks come in various sizes, such as 5.5mm x 2.1mm or 5.5mm x 2.5mm, depending on the requirements of the device and the power supply.

2. Coaxial Jacks: Coaxial DC jacks feature a similar structure to barrel jacks but with more defined, often thicker, insulation and a more complex arrangement. These jacks are used in high-current applications and some professional-grade equipment.

3. Panel-Mount DC Jacks: Panel-mount jacks are mounted directly onto a device's enclosure or PCB (printed circuit board) and allow for easy connection to external power supplies. These types of jacks are often used in applications where a fixed and secure power connection is necessary.

4. Right-Angle DC Jacks: For certain designs where space is limited, right-angle DC jacks are used. These jacks have a 90-degree angle, allowing for easier access to the jack from the side or bottom of a device, which is useful in compact enclosures.

5. Miniature and Micro DC Jacks: Smaller variants of standard DC jacks, these are used in portable or low-power devices. They offer the same basic functionality but are designed for more compact form factors.

Importance of Proper Polarity and Voltage

Proper polarity and voltage are critical when using a DC power jack. If the power supply is connected incorrectly, such as reversing the positive and negative terminals, it could cause significant damage to the device’s internal components, or the device may fail to operate. Always ensure that the correct polarity is adhered to, and check the voltage and current ratings to match the device’s specifications.

In summary, a DC power jack is a key component in many electronic devices, enabling the safe and efficient transfer of power from an external power supply to the device. By providing a secure and reliable connection for the positive and negative terminals, the jack ensures the proper functioning of internal components. Understanding how a DC power jack works, along with knowing the different types and their applications, is essential for designing or maintaining electronic systems that require DC power input.
