LED Illuminated Switch

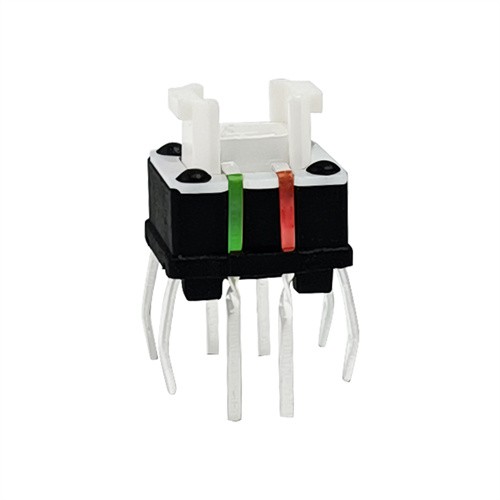

The 7x7mm red-green bi-color illuminated LED tact switch is a small, user-interactive component used in modern electronic devices. Measuring just 7mm x 7mm, it features a tactile switch mechanism paired with a bi-color LED light that can emit red and green colors based on the state of the switch. When the user presses the switch, it provides tactile feedback, often referred to as a "click," while simultaneously illuminating either a red or green light, depending on the configuration.

These switches are commonly used to provide visual feedback in addition to the mechanical response of the button. The inclusion of two distinct LED colors allows the switch to convey different statuses or modes to users, offering a clear visual indicator of the system’s state.

Key Features and Benefits

The 7x7mm red-green bi-color illuminated LED tact switch offers several distinct advantages, including:

At just 7mm by 7mm, the tact switch is ideal for space-constrained applications where size is a critical factor. Despite its small form, it delivers all the features required for modern devices without taking up excessive space on the PCB or control panel. This makes it perfect for compact handheld devices, remote controls, and small consumer electronics.

One of the standout features of this tact switch is its bi-color LED capability. The red and green LEDs provide clear, intuitive feedback to the user. For instance, a green light could indicate a system is running smoothly, while a red light could signal an error or an alert. This visual signaling enhances the user experience by making it easy to understand the status of a device at a glance.

The tactile switch mechanism adds an additional layer of interaction. When the button is pressed, users receive a noticeable click, which provides confirmation that their action has been registered. This feedback is particularly useful in applications where users rely on physical input, such as remote controls, medical devices, and industrial equipment.

The 7x7mm red-green bi-color illuminated LED tact switch is designed for long-lasting performance. Made from durable materials, it can withstand repeated use without degrading in performance. These switches are engineered to offer a high number of actuations, making them reliable for both consumer and industrial applications.

Combining these components, a 7x7mm red-green through-hole LED tact switch is a tactile switch that incorporates red and green LEDs and measures 7x7 millimeters in size. These switches are commonly used in electronic devices and control panels where user input is required, and dual-color illumination can provide visual feedback or status indication.

PRODUCT DIMENSION

PRODUCT CATEGORY

Illuminated tactile switches, button switches, toggle switches, rocker switches, slide switches, microswitches, sockets and connectors, as well as hardware stamping and plastic injection.
