PCB Illuminated Tactile Switch

The PCB illuminated tactile switch is a vital component in the design of modern electronic devices. This type of switch combines tactile feedback with visual indication through integrated LED illumination, making it an essential choice for user interfaces in various applications, including consumer electronics, automotive systems, and industrial equipment.

When designing a PCB that includes illuminated tactile button switches, several factors should be considered:

• Footprint and Pad Layout: Ensure that the footprint of the switch is accurately represented on the PCB layout, allowing for proper soldering and alignment.

• LED Circuitry: Design the necessary circuitry to power the LED, including resistors to limit current and prevent damage. Consider the voltage and current ratings of the LED to ensure optimal performance.

• Routing: Plan the PCB routing to minimize interference and noise. Keep the switch traces short and direct to reduce potential signal degradation.

• User Interface Placement: Position the switches in a way that enhances usability, ensuring they are easily accessible for users. Grouping them with related components can improve the overall design.

The illuminated tactile button switch is an essential component in creating effective user interfaces in electronic devices. Its combination of tactile feedback and visual indication enhances user interaction, making it invaluable in various applications. As a PCB designer, understanding its features and integration requirements is key to developing efficient and user-friendly electronic products.

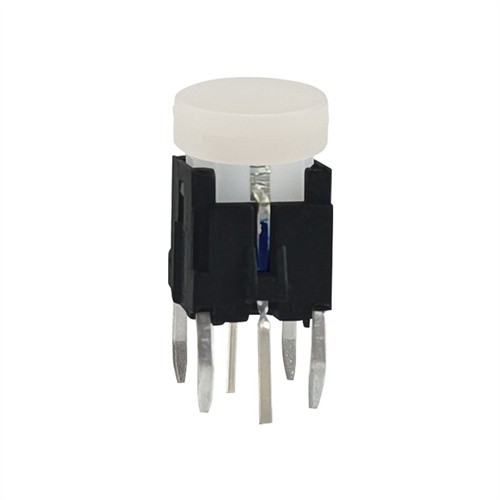

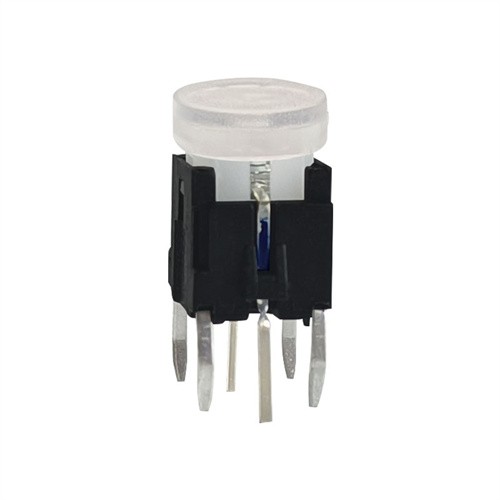

The illuminated tact switch with semi-transparent round 7.5mm cap, this kind of cap can be emit the lighting effect more better. The 6x6 PCB Illuminated Tactile Switch is a versatile device that has many applications. Its construction is simple, and it is designed to withstand constant use. The LED light illuminates when the button is pressed, making it easy for the user to see the status of the button. The button is ideal for devices where there is a need for frequent button presses or where the user needs to see the button's status. Overall, the 6x6 THT LED tactile button is an essential component of many devices and is a reliable and durable solution for any button-related tasks.

PRODUCT DIMENSION

PRODUCT CATEGORY

Tactile switches, button switches, toggle switches, rocker switches, slide switches, microswitches, sockets and connectors, as well as hardware stamping and plastic injection.
