Introduction to Cut-Out for Metal Pushbuttons

When designing with rugged metal pushbuttons, understanding the cut-out specifications is vital to ensure proper installation, functionality, and long-term performance. The cut-out, or the hole in the mounting panel where the pushbutton is installed, serves as the foundation for a secure and effective integration of the switch into the equipment. Proper alignment of the cut-out dimensions with the button's specifications ensures a seamless fit, optimal functionality, and an aesthetically pleasing appearance.

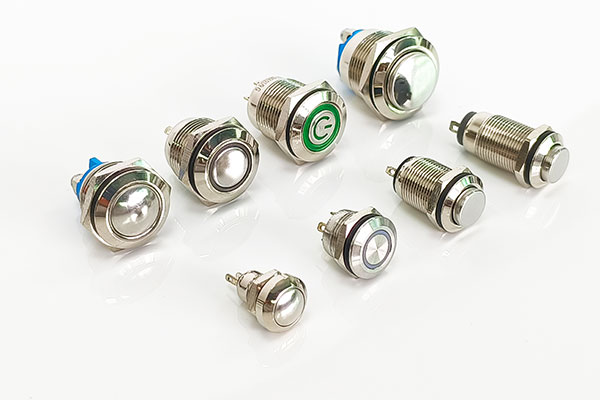

Rugged metal pushbuttons are widely used in industrial, automotive, marine, and consumer applications, where they are subjected to demanding environments. Their ability to withstand these conditions depends not only on their internal components but also on how securely and accurately they are mounted. Below is a detailed introduction to the cut-out requirements and considerations that define the installation of these durable pushbuttons.

1. Standardized Cut-Out Dimensions

Rugged metal pushbuttons come in a variety of sizes to cater to different applications. Each size corresponds to a specific cut-out diameter:

• 12mm Cut-Out: Ideal for compact installations where space is limited.

• 16mm Cut-Out: A commonly used size offering a balance between compactness and robustness.

• 19mm Cut-Out: Slightly larger, suitable for industrial and automotive applications requiring enhanced visibility and accessibility.

• 22mm Cut-Out: Standard size for industrial control panels and machinery interfaces.

• 30mm Cut-Out: Preferred for heavy-duty applications where durability and prominence are crucial.

The diameter of the cut-out must match the threaded body of the pushbutton for a snug and secure fit.

2. Panel Thickness Compatibility

The thickness of the mounting panel is another critical consideration. Rugged metal pushbuttons are designed to accommodate a range of panel thicknesses:

• Standard Range: Typically supports panel thicknesses from 1mm to 6mm.

• Extended Range: Some models are designed for thicker panels, up to 10mm or more, to suit heavy-duty equipment.

Ensuring the cut-out accounts for the panel's thickness guarantees the pushbutton is securely fastened and flush with the surface.

3. Tolerance and Precision

Accurate cut-out dimensions are essential to maintain the structural integrity of the panel and the reliability of the pushbutton:

• Precision Cutting: Laser cutting, CNC machining, or die-punching techniques are commonly used for achieving precise cut-outs.

• Tolerances: Typically, a tolerance of ±0.1mm is recommended for cut-out diameters to ensure proper alignment and a tight fit.

Improperly cut holes can lead to loose mounting, misalignment, or compromised ingress protection.

4. Mounting and Fixation

The cut-out works in conjunction with the button’s mounting mechanism:

• Threaded Body with Nut: The most common design, where the pushbutton is inserted into the cut-out and secured using a lock nut.

• Snap-In Mounting: Some models feature snap-fit designs that eliminate the need for additional hardware.

• O-Rings and Gaskets: Often included to enhance sealing and ensure the button maintains its IP rating against dust and water ingress.

5. Sealing and Ingress Protection

A properly executed cut-out is essential for maintaining the pushbutton's ingress protection (IP) rating:

• IP65/IP67/IP68 Ratings: Ensure the cut-out is paired with the correct sealing accessories, such as gaskets or O-rings, to prevent water or dust ingress.

• Panel Flatness: The panel surface must be flat and smooth around the cut-out to ensure effective sealing.

6. Aesthetic and Functional Integration

The cut-out plays a key role in both the functional and aesthetic integration of the pushbutton:

• Flush Mounting: Creates a sleek and modern appearance while reducing the risk of accidental activation.

• Raised Mounting: Provides enhanced tactile feedback and is suitable for applications requiring quick access.

Attention to the cut-out design ensures the pushbutton not only operates effectively but also contributes to the overall appearance and usability of the device.

7. Tools and Guidelines for Installation

Creating precise cut-outs requires the right tools and techniques:

• Punching Tools: Ideal for creating standardized cut-outs in metal panels.

• Drill Bits and Hole Saws: Suitable for creating holes in plastic or thin metal panels.

• Templates and Guidelines: Manufacturers often provide templates or technical drawings with exact dimensions to assist installers.

8. Industry-Specific Requirements

Different industries have specific requirements for cut-out specifications:

• Industrial Automation: Panels often include multiple cut-outs, requiring precise alignment for uniformity.

• Marine Applications: Require additional sealing measures to prevent corrosion and water ingress.

• Consumer Electronics: Emphasis on aesthetics and compactness, with smaller cut-outs and sleek designs.

Cut-out specifications are a critical aspect of the design and installation of rugged metal pushbuttons. From accurate dimensions and panel thickness compatibility to ingress protection and aesthetic integration, every detail matters in ensuring the button performs optimally and enhances the overall device. Understanding these specifications enables engineers and designers to make informed decisions, ensuring a seamless fit, long-lasting performance, and a polished final product. With proper attention to cut-out design and installation, rugged metal pushbuttons deliver reliability and functionality even in the harshest environments.
