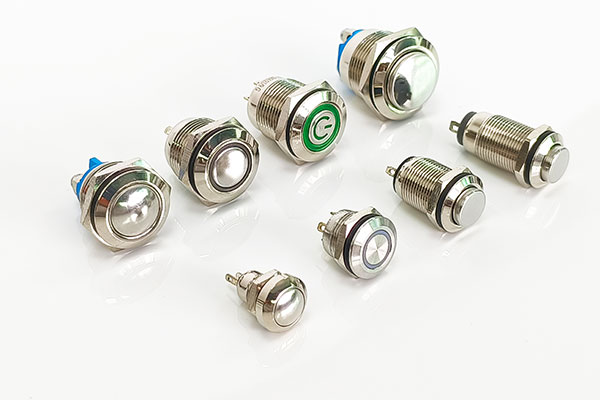

Introductions for the Rugged latching metal pushbuttons

Rugged latching metal pushbuttons are designed to deliver reliability, durability, and functionality across a wide range of industrial and consumer applications. These pushbuttons are characterized by their latching mechanism, which allows the switch to stay in a pressed or toggled position until manually pressed again. This unique feature, combined with robust construction and versatile options, makes them ideal for controlling power circuits, modes, or functions in systems where consistent on/off states are required.

Understanding the specifications of rugged latching metal pushbuttons is essential for choosing the right component for your application. From material choices to operational ratings, these switches are meticulously designed to endure demanding environments while ensuring ease of use and safety. Below is a comprehensive overview of the key specifications that define these reliable components.

1. Material and Build Quality

The rugged nature of these switches begins with their construction materials. They are built to resist harsh conditions, ensuring a long service life. Common materials include:

• Stainless Steel: Offers superior resistance to corrosion, impact, and environmental factors.

• Aluminum Alloy: Lightweight yet durable, often anodized for additional protection and aesthetic versatility.

• Brass with Chrome Plating: Provides a polished finish with excellent mechanical strength.

These materials ensure durability in demanding environments such as industrial facilities, outdoor installations, and transportation systems.

2. Latching Mechanism Design

The latching mechanism is a defining feature of these pushbuttons, providing:

• Toggle Functionality: Maintains the switch state (on or off) without continuous user interaction.

• Smooth Operation: Designed for consistent performance across its lifecycle, ensuring reliable toggling without sticking or failure.

3. IP and Environmental Ratings

Rugged latching metal pushbuttons are built to perform in extreme conditions, often rated with high ingress protection (IP) levels:

• IP65: Resistance to dust and water spray.

• IP67: Dust-tight and capable of withstanding temporary immersion in water.

• IP68: Suitable for extended submersion and highly exposed outdoor settings.

These ratings make them suitable for use in industrial automation, marine environments, and outdoor controls.

4. Electrical Specifications

The electrical characteristics determine compatibility with various systems:

• Voltage Ratings: Commonly support low-voltage DC circuits (e.g., 3V, 12V, 24V) as well as standard AC levels (e.g., 110V, 220V).

• Current Ratings: Ranges vary, from low-current signaling applications to high-current power switching.

• Contact Resistance: Typically low (measured in milliohms), ensuring efficient electrical conductivity.

• Insulation Resistance: High resistance values ensure safe operation and prevent unintended electrical leakage.

5. Mechanical Specifications

Latching pushbuttons are designed for repeated and reliable operation:

• Lifespan: Often rated for over 1 million toggles, ensuring long-term use in high-demand applications.

• Actuation Force: Typically ranges from 2N to 5N, providing firm yet comfortable feedback.

• Travel Distance: Balanced to provide a tactile response while ensuring smooth latching action.

6. Mounting and Dimensions

Rugged latching pushbuttons are available in various sizes and mounting configurations to suit different design requirements:

• Diameter: Common sizes include 12mm, 16mm, 19mm, 22mm, and 30mm, catering to compact or heavy-duty installations.

• Threaded Mounting: Standard threaded bodies enable secure panel installation, with lock nuts for additional stability.

7. LED Illumination Features

For enhanced usability and aesthetics, many latching metal pushbuttons include illumination options:

• Lighting Options: Available as ring lights, dot lights, or backlit symbols for user-friendly operation.

• Color Variants: Single-color or RGB LEDs allow customizable illumination for visual feedback or aesthetic preferences.

• Voltage Compatibility: LED circuits are often designed to match common operating voltages like 12V or 24V.

8. Compliance and Certifications

Rugged latching metal pushbuttons adhere to stringent industry standards for safety and environmental compliance:

• RoHS: Ensures no harmful substances are used in manufacturing.

• CE Certification: Confirms compliance with European health and safety standards.

• UL Listing: Indicates the switch is approved for use in North American markets.

9. Application Versatility

Latching metal pushbuttons find use in a variety of settings:

• Industrial Equipment: Control panels for machinery and automation systems.

• Consumer Electronics: Power buttons and mode switches in appliances.

• Transportation Systems: Dashboard controls, door locks, and signaling systems.

• Marine and Outdoor Applications: Controls for boats, vehicles, and outdoor kiosks.

Rugged latching metal pushbuttons are a perfect blend of functionality, durability, and design flexibility. Their robust construction, reliable latching mechanism, and diverse specifications make them indispensable in applications that demand consistent and precise control. Whether for industrial use, consumer products, or outdoor settings, these switches offer long-lasting performance and adaptability, ensuring they meet the needs of modern technologies and environments.
