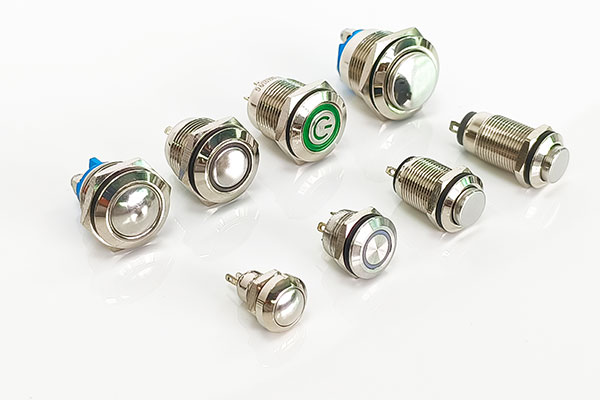

Introduction to Rugged Metal Pushbutton Specifications

Rugged metal pushbuttons are designed to meet the diverse requirements of industries that demand reliability, durability, and precision. Understanding the specifications of these versatile components is crucial for selecting the right switch for your application. From construction materials to operational ratings, every aspect of their design is meticulously engineered to ensure optimal performance in harsh environments and high-demand scenarios. This comprehensive overview delves into the key specifications that make rugged metal pushbuttons an indispensable choice for various sectors, including industrial, automotive, and consumer electronics.

1. Material and Construction

The hallmark of rugged metal pushbuttons lies in their robust construction. They are typically made from high-grade materials such as:

• Stainless Steel: Renowned for its corrosion resistance, strength, and ability to withstand extreme conditions.

• Aluminum Alloy: Offers a lightweight alternative with excellent durability and anti-corrosion properties, often anodized for aesthetic and protective finishes.

• Brass with Chrome Plating: Common in applications requiring a sleek, polished appearance combined with toughness.

These materials ensure the switches resist wear and tear from prolonged use, environmental exposure, and physical stress.

2. IP Ratings for Ingress Protection

Ingress Protection (IP) ratings are a critical specification for rugged metal pushbuttons, indicating their resistance to dust and water ingress. Common ratings include:

• IP65: Protection against dust and water jets from any direction.

• IP67: Dust-tight and capable of withstanding immersion in water up to 1 meter for 30 minutes.

• IP68: Offers extended protection against submersion in deeper water, ideal for underwater or highly exposed environments.

These ratings make rugged metal pushbuttons suitable for outdoor installations, marine applications, and industrial environments.

3. Electrical Specifications

The electrical characteristics of rugged metal pushbuttons define their compatibility with different circuits and loads. Key parameters include:

• Voltage Ratings: Typically range from low-voltage DC (e.g., 3V, 12V, 24V) to standard AC levels (e.g., 110V, 220V).

• Current Ratings: Vary depending on the switch's design, often from milliamps for signal control to several amps for power circuits.

• Contact Resistance: Generally low (in the milliohm range), ensuring minimal power loss and high efficiency.

• Dielectric Strength: Specifies the switch’s ability to withstand high voltages without breaking down, ensuring safety and reliability.

4. Mechanical Durability

Mechanical performance is another key consideration in rugged pushbutton specifications. These switches are designed to endure millions of actuations, with ratings such as:

• Lifespan: Often exceeding 1 million cycles for heavy-duty applications.

• Actuation Force: Typically ranges from 2N to 5N, providing firm yet user-friendly tactile feedback.

• Travel Distance: Usually between 1mm and 5mm, offering a balance between sensitivity and user confirmation.

5. Mounting and Dimensions

Rugged metal pushbuttons come in various sizes to fit specific mounting requirements. Common dimensions include:

• Diameter: Standard sizes range from 12mm to 30mm, with larger sizes available for specialized uses.

• Mounting Style: Threaded designs for panel mounting are standard, often requiring lock nuts for secure installation.

Flush, raised, or dome-shaped profiles are available to suit ergonomic or aesthetic preferences.

6. Illumination Options

Many rugged metal pushbuttons incorporate LED illumination for enhanced visibility and user interaction. Specifications for illumination include:

• LED Voltage: Designed to match circuit requirements, such as 12V or 24V.

• Color Options: Single-color (e.g., red, green, blue) or RGB variants for multicolor functionality.

• Illumination Style: Ring, dot, or backlighting options cater to aesthetic and practical needs.

7. Operational Modes

The operational modes of these pushbuttons determine their functionality:

• Momentary: The button returns to its original position upon release, suitable for temporary actions like triggering.

• Latching: The button stays in its pressed position until pressed again, ideal for power toggles or mode selection.

8. Standards and Certifications

Rugged metal pushbuttons often comply with international standards to ensure safety and compatibility, including:

• RoHS Compliance: Ensures the absence of hazardous substances in the materials.

• CE Marking: Denotes conformity with European safety regulations.

• UL Listing: Indicates certification for use in North America.

The detailed specifications of rugged metal pushbuttons highlight their adaptability to challenging environments and diverse applications. Their construction, mechanical and electrical performance, mounting options, and operational features are carefully tailored to meet the demands of various industries. By understanding these specifications, designers and engineers can make informed choices, ensuring seamless integration and long-lasting performance in their projects.
