What are the types of metal pushbutton switches

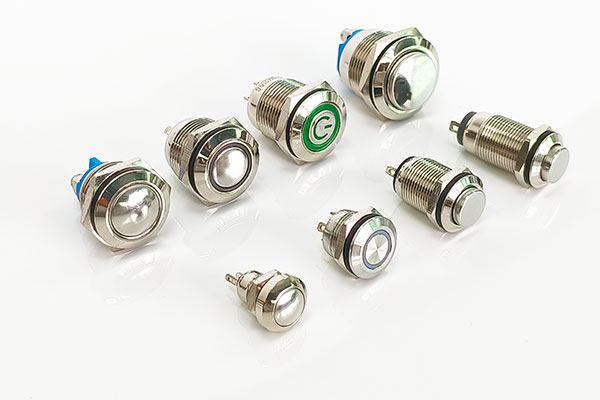

Metal pushbutton switches are a fundamental component in various electronic systems, from industrial machinery to consumer electronics. Their versatility, durability, and aesthetic appeal make them indispensable in a wide range of applications. While there are numerous designs and configurations, metal pushbutton switches can generally be categorized into several key types based on their functionality, design features, and intended usage. Understanding the different types of metal pushbutton switches is crucial for selecting the right one for your specific application.

1. Momentary Metal Pushbutton Switches

Momentary pushbutton switches are the most common type of metal pushbutton switches. These switches are designed to stay in their activated state only while the button is being pressed. As soon as the button is released, the switch returns to its original position, deactivating the circuit. This type of switch is often used for temporary actions like initiating a process, resetting a system, or triggering a signal.

Key Features:

• Momentary Action: The switch activates only while pressed and returns to its default state once released.

• Applications: Used in scenarios where short bursts of action are needed, such as resetting devices, triggering alarms, or toggling states in machinery.

• Examples: Alarm systems, push-to-talk buttons, control panels, and custom controllers.

Variants:

• Normally Open (NO): In the unpressed state, the contacts are open, and pressing the button closes the circuit.

• Normally Closed (NC): In the unpressed state, the contacts are closed, and pressing the button opens the circuit.

2. Latching Metal Pushbutton Switches

Latching pushbutton switches function differently from momentary switches. A latching switch remains in the "on" position until pressed again, at which point it latches back into the "off" state. This type of switch is often used for applications that require a persistent action, like powering a device on or off, or toggling between two states.

Key Features:

• Latching Mechanism: A single press latches the switch into an on or off state, and it remains in that state until pressed again.

• Applications: Commonly used for controlling power, activating or deactivating functions, or switching between two modes in electronic devices or industrial machinery.

• Examples: Power buttons in consumer electronics, control systems in industrial applications, and power toggle switches.

Variants:

• Single Pole, Single Throw (SPST): A basic latching switch that has one input and one output, turning a device on or off.

• Double Pole, Single Throw (DPST): A latching switch with two inputs and outputs, often used in more complex circuits or for controlling two separate functions simultaneously.

3. Illuminated Metal Pushbutton Switches

Illuminated pushbutton switches are a popular choice in applications where visibility and user feedback are essential. These switches incorporate an LED or another light source that illuminates the switch when it is activated. The illumination can be either constant or dependent on the state of the switch (e.g., on when the switch is engaged and off when it’s not).

Key Features:

• Built-in LED or Light Source: Provides clear visual feedback, indicating the status of the switch (on or off).

• Applications: Common in control panels, machinery, and consumer electronics where users need clear visual cues about the switch’s state.

• Examples: Control panels in industrial environments, audio equipment, and automotive switches.

Variants:

• Single-color Illumination: The LED light is a single color (e.g., red for "off" and green for "on").

• Dual-color Illumination: The LED can switch between two colors to indicate different states of the switch, such as green for on and red for off.

4. Sealed Metal Pushbutton Switches

Sealed pushbutton switches are specifically designed to protect the switch mechanism from dust, moisture, and other contaminants. These switches have gaskets or sealing materials that ensure the internal contacts are shielded from external environmental factors. Sealed switches are rated with an Ingress Protection (IP) level, which indicates their ability to withstand exposure to water and dust.

Key Features:

• Protection Against Elements: Designed to be waterproof and dustproof, making them ideal for outdoor or harsh environments.

• Applications: Used in environments where cleanliness and durability are critical, such as in outdoor equipment, automotive, and medical devices.

• Examples: Military equipment, emergency systems, outdoor lighting, and medical devices.

Variants:

• IP67 or IP68: Switches with these ratings are fully dust-tight and can withstand immersion in water for extended periods (IP68 being the highest level).

• IP54 or IP65: Provides protection against dust and water splashes, suitable for less extreme conditions.

5. Anti-Vandal Metal Pushbutton Switches

Anti-vandal switches are specifically engineered to withstand physical abuse and tampering. These switches are often used in public spaces or in applications where security is a concern. The switches are typically constructed from robust materials, such as stainless steel or aluminum, and are designed to resist impact, vandalism, and harsh environmental conditions.

Key Features:

• Impact Resistance: Built to resist damage from physical impact or tampering.

• Applications: Ideal for public kiosks, vending machines, access control systems, and outdoor installations where the switch may be exposed to vandalism or misuse.

• Examples: ATMs, public information terminals, and electronic access points.

Variants:

• Flush Mounting: Designed to sit flush with the surface, making them less prone to physical damage.

• Reinforced Mechanisms: Additional internal protections, such as reinforced contacts and impact-resistant casings.

6. Surface Mount and PCB-Mount Metal Pushbutton Switches

These switches are designed for integration directly into printed circuit boards (PCBs). Surface mount metal pushbutton switches have pins or pads that allow them to be soldered onto the surface of a PCB, while PCB-mount versions are designed for more permanent, embedded use. These types are commonly used in compact, integrated systems, where a switch needs to be part of a complete electronic assembly.

Key Features:

• Compact Design: Small form factor, ideal for use in tight spaces or embedded applications.

• Applications: Used in consumer electronics, industrial controllers, and various other compact devices.

• Examples: Handheld devices, automotive electronics, and compact machinery.

Variants:

• Through-Hole Mounting: Designed with longer pins for insertion into holes in a PCB for soldering.

• Surface Mount: Designed for flat mounting on the PCB surface with no through-holes.

7. Capacitive Metal Pushbutton Switches

Capacitive metal pushbutton switches use the principles of capacitance to detect touch, rather than mechanical movement of the switch. These switches activate when a user’s finger or hand comes into close proximity, altering the capacitance near the sensor. Capacitive switches are often used for modern, sleek designs where mechanical parts are minimized.

Key Features:

• Touch Sensitivity: Activates based on touch or proximity, without requiring a physical button press.

• Applications: Used in high-end consumer products, automotive interfaces, and medical devices where smooth, clean designs are desirable.

• Examples: Smartphones, touch-sensitive control panels, and smart home devices.

8. Specialty Metal Pushbutton Switches

There are a variety of other specialty switches designed for specific needs or environments. These switches might combine several of the features above or be tailored for niche applications. Some of these include:

• Ruggedized Military or Aerospace Switches: Designed for extreme conditions such as high shock, vibration, and temperature changes.

• Biometric Pushbutton Switches: Equipped with sensors that can detect fingerprints or other biometric data to authorize access or actions.

• High-Current Pushbuttons: For applications that require the switching of high-power circuits, such as in industrial control systems.

Metal pushbutton switches are versatile, durable, and essential components used in a wide variety of applications. By understanding the different types of metal pushbutton switches, you can select the appropriate switch for your specific needs, whether it’s a simple momentary switch for a consumer device, a latching switch for an industrial control system, or a sealed, vandal-resistant switch for outdoor or public applications. Each type offers distinct advantages depending on the requirements of the system, the environment, and the user experience.
