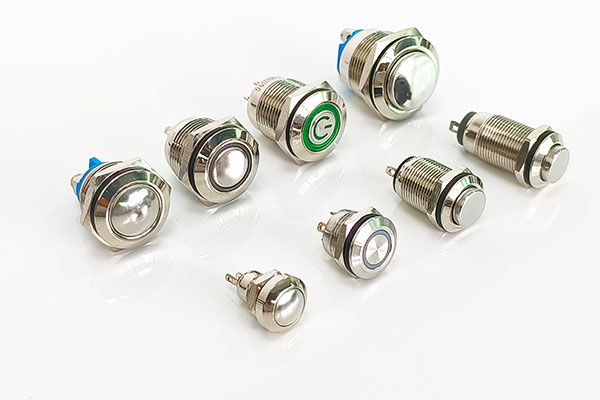

Metal button switch product installation instructions and precautions

Installing a metal pushbutton switch requires careful attention to detail to ensure its proper functioning and longevity, as well as safety during the installation process. Whether the switch is momentary or latching, illuminated or non-illuminated, adhering to the correct installation procedure is critical. Below is a comprehensive guide on how to install a metal button switch, along with precautions to consider during the process.

Installation Instructions

1. Prepare the Installation Site

• Check Compatibility: Ensure the metal pushbutton switch is compatible with the device or system where it will be installed. Verify the specifications such as voltage, current, and switch type (momentary or latching) to ensure proper integration.

• Cut the Hole: If the switch is designed for panel mounting, you will need to drill or cut a hole in the surface where the switch will be installed. Refer to the switch’s datasheet for the recommended hole size to avoid an ill-fitting installation. For standard round buttons, the hole size typically ranges from 16mm to 25mm in diameter, depending on the model.

2. Wiring Preparation

• Power Off: Before starting the wiring process, ensure that the device or system is powered off. This is essential to prevent electrical shock or damage to the components.

• Wire Selection: Use wires that are appropriate for the voltage and current ratings of the switch. Typically, for lower-voltage switches, 22-24 AWG wire is recommended. For high-power applications, use heavier gauge wires to ensure a secure connection.

• Strip the Wires: Strip about 6mm of insulation from the ends of the wires to ensure a solid electrical connection to the switch terminals.

3. Mount the Metal Pushbutton Switch

• Insert the Switch: Slide the metal button switch into the prepared hole from the front of the panel or surface. Most switches have a threaded nut that is used to secure the switch in place.

• Secure the Switch: Tighten the nut (if applicable) by hand, and then use a wrench or pliers to further tighten it, but be careful not to overtighten, as this could damage the switch or the panel. For illuminated switches, ensure that the LED connections are properly aligned.

4. Connect the Wires

• Common (COM) terminal: The main terminal that carries the current.

• Normally Open (NO) or Normally Closed (NC): Depending on the switch type, these terminals either complete or break the circuit when the button is pressed.

• Terminal Identification: Metal pushbutton switches typically have either screw terminals or solder pads. Identify the terminals according to the switch’s wiring diagram. In most cases:

• Make the Connections: Attach the stripped ends of the wires to the appropriate terminals. For screw terminals, use a small screwdriver to tighten the screws and secure the wires. For solder-type terminals, apply solder to the wire and terminal connection, ensuring a strong bond.

5. Check for Proper Function

• Test the Circuit: Once the wires are securely connected, turn the power back on and test the switch. Press the button to check for functionality—momentary switches should activate only while pressed, and latching switches should toggle between two states.

• Check for Illumination (if applicable): If the switch is illuminated, ensure that the LED lights up when activated. If the light is not functioning, check the LED connections and ensure the power supply is correct.

Precautions During Installation

1. Power Off the System

• Always ensure the system is powered off before starting any installation to avoid electrical shocks or accidental short circuits. Disconnect the main power supply to the device or system to ensure safety.

2. Correct Wiring

• Polarity: For illuminated metal pushbutton switches, make sure the positive and negative terminals are correctly wired to the power source. Incorrect wiring can damage the LED or cause it to malfunction.

• Wire Gauge: Use wires of appropriate gauge for the current your switch will handle. Under-sized wires can overheat, potentially leading to system failure or even fire hazards.

3. Avoid Over-Tightening

• When securing the switch in place, take care not to overtighten the mounting nut. Over-tightening can damage the switch housing, especially in cases where the switch is constructed with softer materials or has a plastic base.

4. Check Switch Ratings

• Verify that the switch’s voltage and current ratings match the requirements of the application. Installing a switch rated for lower voltage or current than what is required can lead to overheating, failure, or even electrical fires.

5. Inspect for Damage

• Before installing the switch, inspect it for any visible damage, such as cracks, dents, or broken components. A damaged switch can fail prematurely or pose safety risks during operation.

6. Sealing and Environmental Considerations

• For switches rated with an IP (Ingress Protection) seal, ensure that the environment is suitable for such ratings. If you are installing the switch in an outdoor or harsh environment, confirm that the seal is intact and properly mounted to prevent water or dust ingress.

7. Grounding

• If the switch has a grounding terminal (especially in metal-housing switches), make sure it is properly grounded to prevent electrical shocks. This is particularly important for industrial or commercial applications where safety standards are stricter.

8. Heat Dissipation

• In high-current applications, ensure that the switch is installed in a location that allows adequate ventilation. Overheating can cause the switch or the system to fail.

9. Clearance for Operation

• Ensure that there is adequate clearance around the switch for proper operation. Obstructions could prevent the switch from being pressed fully or interfere with the electrical contacts.

10. Check Tightness of All Connections

• Loose connections are one of the most common causes of electrical failures. After installation, double-check that all connections are tightly secured and that no wires are frayed or exposed.

Installing a metal pushbutton switch involves careful planning, precise installation, and attention to safety. By following the above instructions and precautions, you can ensure that your switch functions correctly, lasts longer, and operates safely within the intended system. Proper installation not only optimizes the performance of the switch but also contributes to the overall safety and reliability of the electronic device or machinery. Always refer to the specific datasheet and manufacturer’s instructions for additional guidance based on the switch model and its intended use.
