Types of Toggle Switch

A toggle switch is a mechanical switch that is activated by a lever or a small handle, typically flipped up or down to make or break an electrical connection. These switches are widely used in a range of applications, from consumer electronics to industrial machinery, due to their simplicity, reliability, and clear visual indication of the switch’s position. Toggle switches come in various types, configurations, and functionalities, each suited for specific needs. In this 600-word overview, we’ll explore the most common types of toggle switches, their uses, advantages, and technological features.

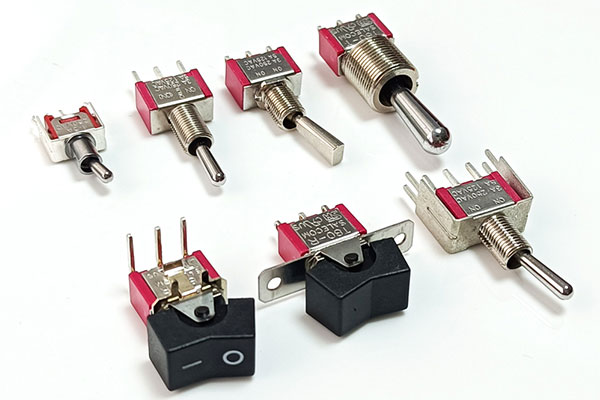

1. SPST Toggle Switch (Single Pole, Single Throw)

The SPST toggle switch is the simplest and most common type of toggle switch. It features a single input (pole) and a single output (throw), meaning it connects or disconnects a single circuit. When the lever is flipped, the switch either closes or opens the circuit, allowing current to flow or halting it.

Applications:

• Basic on/off controls for appliances, lights, and other low-power electronic devices.

• Simple, low-cost solutions for manual operation in consumer electronics or home appliances.

Advantages:

• Simple Design: Easy to use and understand.

• Cost-Effective: Affordable for mass production and consumer products.

2. SPDT Toggle Switch (Single Pole, Double Throw)

The SPDT toggle switch has one input (pole) and two possible output positions (throws), allowing the user to choose between two different circuits. When the switch is flipped, it alternates between two states: one circuit path is connected, and the other is disconnected. This type of switch is versatile because it can redirect electrical flow from one circuit to another.

Applications:

• Used in settings that require the control of multiple devices or functions from a single switch, such as in sound systems, lighting, or electronics that require switching between two different power sources.

• Can be used in cars to select different power sources, like switching between headlights and fog lights.

Advantages:

• Versatile: Allows switching between two circuits, providing more functionality than an SPST switch.

• Compact: Efficient use of space while still providing multiple options.

3. DPST Toggle Switch (Double Pole, Single Throw)

A DPST toggle switch functions similarly to an SPST switch, but with two separate circuits controlled simultaneously. It has two poles (inputs) and a single throw (output). This means the switch can control two separate electrical circuits simultaneously with one action.

Applications:

• Often used in applications where two separate circuits need to be controlled at once, such as in motorized devices, or for turning on/off both a fan and light using one switch.

• Common in older appliances, equipment with dual circuits, or in industrial settings.

Advantages:

• Dual Circuit Control: Efficiently controls two independent circuits at once.

• Safety: Can be used in systems where two connections need to be turned off simultaneously for safety or operational reasons.

4. DPDT Toggle Switch (Double Pole, Double Throw)

The DPDT toggle switch has two poles and two throws, meaning it can control two separate circuits and each circuit has two possible connections. This switch is more versatile than the DPST, allowing for the redirection of two separate circuits simultaneously, each with two possible outputs.

Applications:

• Used in complex machinery or devices that require switching between multiple circuit paths, such as reversing motor direction or toggling between multiple power sources.

• Common in electronics, automotive systems, and even guitar amps for switching between different signal paths.

Advantages:

• High Versatility: Provides multiple options for controlling and redirecting circuit paths.

• Useful for Complex Applications: Ideal for advanced or multi-functional systems that need to toggle between multiple states.

5. Rocker Toggle Switch

Although not a traditional “toggle” switch in the sense of having a lever that flips up or down, a rocker toggle switch operates similarly by using a rocking motion. These switches typically have a broader actuation surface and are pushed down or rocked to the "on" or "off" position, often with a more ergonomic feel.

Applications:

• Used in automotive interiors, power strips, and appliances.

• Preferred in user interfaces where a larger switch is needed for ease of use, such as in power controls for machinery or kitchen appliances.

Advantages:

• Ergonomic: Easier to operate with larger or more accessible buttons.

• Stylish Design: Often used for a more modern, sleek look in consumer electronics and appliances.

6. Miniature Toggle Switch

The miniature toggle switch is a smaller version of the standard toggle switch, designed for use in compact or portable devices where space is limited. Despite its smaller size, it operates just like a regular toggle switch, providing the same functionality but in a more space-efficient package.

Applications:

• Common in small electronics, model equipment, remote controls, and other compact devices where a traditional toggle switch would be too large.

• Widely used in communication equipment, toys, and some handheld gadgets.

Advantages:

• Compact: Ideal for applications where size is a constraint.

• Simple and Effective: Maintains the standard toggle switch functionality in a smaller form factor.

7. Toggle Switch with Safety Cover

A toggle switch with a safety cover features a protective cover that prevents accidental activation. The cover is typically flipped open to access the toggle mechanism, ensuring that the switch is only operated intentionally.

Applications:

• Used in industrial equipment, aviation controls, and military applications where safety and prevention of accidental activation are paramount.

• Common in high-risk environments or on critical systems where incorrect operation could result in significant consequences.

Advantages:

• Increased Safety: Prevents inadvertent operation of critical systems.

• Robust Design: Often built to withstand harsh or high-risk environments.

Toggle switches come in a variety of types, each designed to meet specific needs in different environments. Whether for simple on/off functionality (SPST) or complex applications requiring multiple circuit paths (DPDT), toggle switches are widely valued for their reliability, ease of use, and visual feedback. With additional features such as illumination, ergonomic designs, and safety covers, toggle switches can be customized for a wide range of applications, from everyday consumer electronics to advanced industrial systems.
