What is a Toggle Switch

A toggle switch is a mechanical switching device that allows users to control the flow of electrical current in a circuit by flipping a lever or handle between positions. It is a versatile and widely used component in electrical and electronic systems, valued for its simplicity, durability, and reliability. Toggle switches come in various configurations and designs, making them suitable for applications ranging from household appliances to industrial machinery.

Definition and Basic Functionality

At its core, a toggle switch operates as an electromechanical switch. When the actuator, typically a small lever or handle, is flipped, it either completes (closes) or interrupts (opens) the electrical circuit, depending on its position. This basic on/off functionality makes toggle switches essential for controlling devices and systems in a straightforward and effective manner.

Toggle switches are characterized by their tactile operation, meaning users can feel and hear a “click” when the lever changes positions. This tactile feedback enhances usability and provides clear confirmation that the switch has been successfully activated or deactivated. They are also designed to remain in their selected position until manually changed, making them ideal for applications requiring sustained control.

Key Components of a Toggle Switch

1. Actuator (Lever/Handle): The part of the switch that users flip to control its position. It is typically made from plastic or metal and may be ergonomically designed for ease of use.

2. Contacts: These are the conductive elements inside the switch that either touch (closed circuit) or separate (open circuit) depending on the actuator's position.

3. Housing: The outer casing that encases the internal components, protecting them from environmental factors such as dust, moisture, or physical damage. Toggle switches are available in materials like plastic, metal, or a combination of both, depending on the application.

4. Terminals: The points of connection where the switch interfaces with the circuit. These can be soldered, screwed, or plugged into the system.

5. Mounting Mechanism: Toggle switches are designed for various mounting styles, including panel-mounted or PCB-mounted, allowing for flexible installation in different devices or systems.

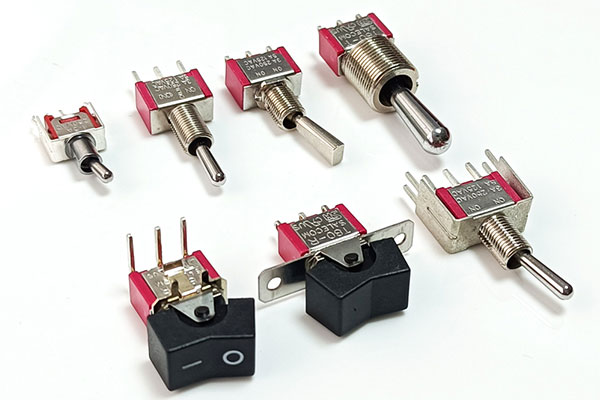

Types of Toggle Switches

Toggle switches can vary based on their pole and throw configurations, which define their circuit control capabilities:

1. Single Pole Single Throw (SPST): Controls one circuit with an on/off function.

2. Single Pole Double Throw (SPDT): Allows switching between two circuits or states.

3. Double Pole Single Throw (DPST): Controls two separate circuits simultaneously with a single toggle.

4. Double Pole Double Throw (DPDT): Manages two circuits, each with two different states, enabling more complex configurations.

These configurations make toggle switches versatile for controlling a variety of devices and systems.

Features and Variations

• Momentary vs. Latching: Momentary toggle switches return to their default position when released, while latching switches stay in their selected position until toggled again.

• Illuminated Toggle Switches: These feature built-in LEDs that provide visual feedback, indicating whether the switch is active.

• Safety-Covered Toggle Switches: Designed for critical systems, these include a protective cover to prevent accidental activation.

• Sealed Toggle Switches: Built to resist dust, moisture, and other environmental factors, making them suitable for outdoor or industrial use.

Applications of Toggle Switches

Toggle switches are found in a wide range of applications:

1. Consumer Electronics: Used in devices like lamps, power tools, and audio systems for basic on/off or mode-selection functionality.

2. Automotive Industry: Essential for controlling vehicle lights, wipers, and other accessories.

3. Industrial Machinery: Common in control panels and heavy equipment, where they manage power and operational modes.

4. Aerospace and Defense: Utilized in aircraft cockpits and military systems due to their reliability and clear operational feedback.

5. Medical Equipment: Often employed in diagnostic and monitoring devices for their precision and ease of use.

Advantages of Toggle Switches

1. Durability: Designed to withstand repeated use, with many models rated for thousands of actuations.

2. Simplicity: Easy to operate, with a straightforward mechanism that minimizes user error.

3. Versatility: Available in a wide range of sizes, materials, and configurations to meet diverse requirements.

4. Clear Feedback: Provides audible and tactile cues, ensuring users are confident in the switch's status.

5. Cost-Effective: Affordable and reliable, making them a popular choice for a variety of systems.

A toggle switch is an indispensable component in electrical systems, offering a simple yet reliable way to control circuits. Its basic design, combined with customizable options, ensures that it remains a favored choice across industries. Whether used for basic on/off functions in household devices or for more complex control in industrial machinery, the toggle switch’s practicality and robustness make it an essential part of modern technology.
