Which size is available with metal push button switch

Metal pushbutton switches come in a range of sizes to accommodate various applications, from industrial control systems to consumer electronics. The size of a switch affects not only its mechanical and electrical performance but also its compatibility with the mounting panel, aesthetic design, and usability. In this guide, we'll explore the different sizes available for metal pushbutton switches and their respective applications.

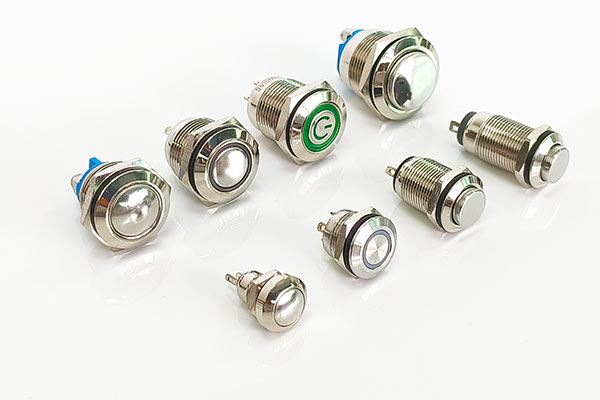

Common Sizes of Metal Pushbutton Switches

1. Standard Sizes:Metal pushbutton switches are generally categorized by their mounting diameter, which corresponds to the size of the hole that needs to be drilled in the panel for installation. The most common sizes for metal pushbutton switches are:

• 16mm (0.63 inches): This size is typically used for compact applications where space is limited but a durable, tactile switch is required. It’s commonly found in small electronic devices, handheld tools, and consumer electronics.

• 19mm (0.75 inches): Slightly larger than the 16mm switch, 19mm switches are often used in control panels, automotive electronics, and small appliances. This size offers a balance between compactness and usability.

• 22mm (0.87 inches): One of the most popular sizes for industrial and commercial applications, 22mm metal pushbutton switches are commonly used in factory control panels, heavy machinery, and equipment that require a durable, reliable switch that can withstand high usage.

• 25mm (1 inch): The 25mm size is used for larger applications where visibility and ease of use are critical. These switches are often seen in industrial equipment, large electronic devices, or systems where the switch needs to be operated frequently or by users with varying levels of dexterity.

2. Custom Sizes:While 16mm, 19mm, 22mm, and 25mm are the most commonly available sizes, many manufacturers offer custom-sized metal pushbutton switches for specific applications. For example:

• Smaller Sizes: Some specialized applications might require switches with diameters smaller than 16mm, such as 12mm or 14mm, for highly compact systems.

• Larger Sizes: In cases where visibility, ease of access, or heavy-duty operations are critical, switches larger than 25mm might be used. These are often custom designs and are typically seen in equipment where a larger actuation surface is needed, like in large industrial machinery or high-end consumer electronics.

3. Key Factors Influencing Size Selection:

   When choosing the appropriate size for a metal pushbutton switch, several factors should be considered:

• Panel Design and Space Constraints: The size of the hole that can be drilled into the mounting panel or enclosure is a primary factor. For small, compact enclosures, a smaller switch such as the 16mm or 19mm variant is preferred. Larger enclosures with more space can accommodate 22mm or 25mm switches.

• User Interaction: The larger the switch, the easier it is to interact with. Larger buttons are ideal in applications where operators need to press the switch frequently, or where visibility and tactile feedback are critical, such as in control panels, medical equipment, or public kiosks.

• Electrical Load and Application Type: The size of the switch can also be determined by the electrical load it needs to handle. Larger switches (such as 22mm or 25mm) are typically used in high-power applications where durability, heat dissipation, and safety are critical.

• Aesthetic and Design Considerations: In consumer products or high-end electronics, the size of the switch may be influenced by the desired look and feel of the product. Smaller switches are often used in sleek, modern designs, while larger buttons may be used for industrial or military-grade equipment to give a more robust appearance.

Mounting Type and Size

The size of a metal pushbutton switch also influences the mounting style. Pushbutton switches are available in two primary mounting types:

• Panel Mount: This is the most common installation method. The switch is mounted through a drilled hole in a panel, and it is secured with a retaining nut. The size of the hole corresponds to the diameter of the button, and the depth of the mounting hole can vary based on the switch size and design.

• PCB Mount: For devices with a printed circuit board (PCB), metal pushbuttons can be designed with a mounting pin that can be soldered directly onto the board. This mounting style often uses smaller switches, typically in the 16mm to 19mm range, and is common in consumer electronics like smartphones or compact industrial devices.

Specialized Sizes for Specific Applications

1. Heavy-Duty Applications:For industrial machinery, military-grade equipment, or outdoor systems, larger sizes (22mm to 25mm) are used because they offer better durability and ease of operation under challenging conditions. These switches are often rated for high current or voltage and designed to be more resistant to wear, corrosion, and extreme environments.

2. Compact Systems:In compact systems, such as medical devices or portable consumer electronics, smaller sizes (such as 16mm and 19mm) are preferred. These switches provide sufficient durability and tactile feedback while allowing designers to conserve space in the overall device.

3. Illuminated Pushbutton Switches:Illuminated metal pushbutton switches, which include an LED light to indicate the switch's status, are available in similar sizes as non-illuminated versions. However, the inclusion of an LED may slightly increase the size of the switch to accommodate the light source, making 19mm and 22mm variants more common in illuminated designs.

Summary of Sizes Available for Metal Pushbutton Switches

Metal pushbutton switches come in various sizes to meet the needs of different applications, from compact consumer devices to large industrial systems. The choice of size depends on several factors, including the available space in the panel, user interaction requirements, electrical load, and aesthetic preferences. By understanding the typical sizes and their uses, you can choose the right switch for your specific needs, ensuring optimal performance, ease of use, and durability. Whether you require a small switch for a portable device or a large, robust switch for an industrial environment, there’s a metal pushbutton switch size to fit your application.
