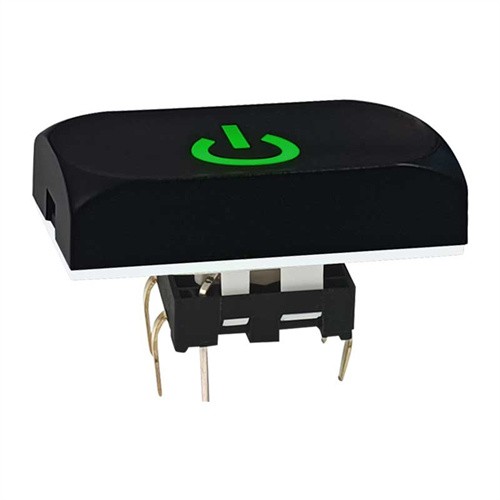

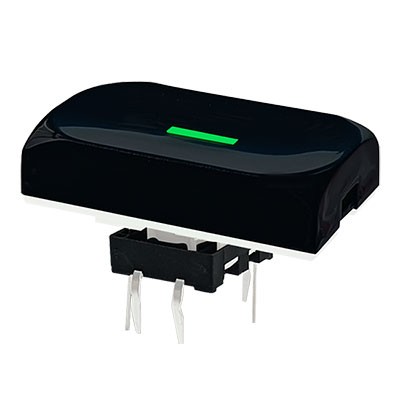

12V Illuminated Tact Button

The Momentary Tact Switch LED with a rectangle cap is a specialized and versatile electronic component that combines tactile feedback, visual indication, and a sleek, space - efficient design.

Physical Design
The most distinctive feature of this switch is its rectangular cap, which offers a unique aesthetic and functional advantage. The rectangular shape provides a larger surface area compared to round - capped switches, making it easier for users to locate and press the switch accurately, especially in situations where quick and precise operation is required. The cap is typically made from high - quality, durable materials such as polycarbonate or ABS plastic. These materials not only ensure the longevity of the switch but also offer excellent optical properties, allowing for clear and even illumination. The edges of the rectangle cap are often smoothly finished, either with rounded corners or subtle chamfers, to prevent any sharp edges that could cause discomfort during use.

Illumination System
At the heart of this illuminated tact switch button is its illumination system. An integrated LED light source is carefully positioned beneath the rectangle cap to provide bright and consistent lighting. The LED can be configured to emit a wide range of colors, including red, green, blue, yellow, and white, depending on the application requirements. For example, in a control panel, a green - Mini Tact Switch With Led might indicate a normal operating state, while a red one could signal an error or warning condition. The illumination is often diffused through the cap to create a uniform glow, eliminating any hotspots or uneven lighting. Some advanced models may even offer adjustable brightness levels or different lighting effects, such as steady - on, blinking, or fading, to convey more complex status information.

Tactile Feedback Mechanism
The tactile feedback provided by this switch is another key aspect of its design. When the rectangle cap is pressed, the switch's internal mechanism provides a distinct and satisfying "click" sensation, giving the user immediate confirmation that the switch has been activated. This tactile response is carefully calibrated to ensure that it requires an appropriate amount of force to press, balancing between preventing accidental activation and ensuring ease of use. The tactile feedback is crucial in applications where precise control is necessary, such as in industrial control systems, medical devices, or high - end consumer electronics.
