PCB Video Illuminated Button

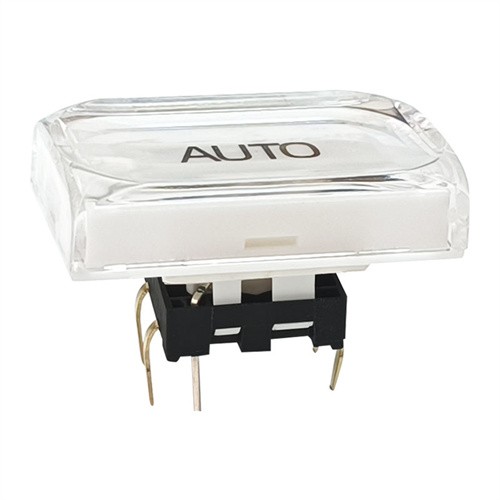

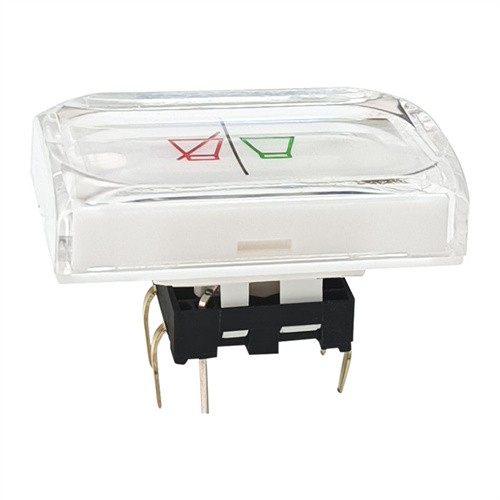

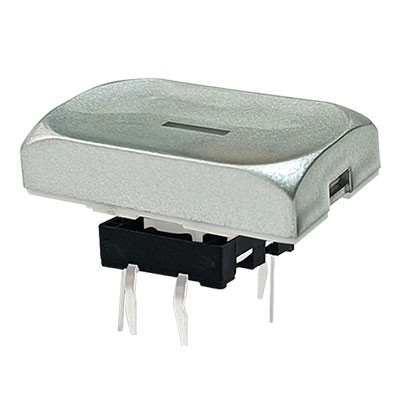

The video illuminated tact button with a 26*15mm cap is a sophisticated and highly functional component designed to enhance user interaction and visual feedback in various video - related systems and devices.

Physical Design and Dimensions
This tact button stands out with its distinct 26*15mm cap size. The rectangular shape of the cap provides a larger surface area for users to press, improving tactile accessibility and reducing the likelihood of misoperation. The cap itself is typically made from high - quality, durable materials such as polycarbonate or acrylic. These materials offer excellent transparency, allowing the internal illumination to shine through clearly, while also being resistant to scratches, impacts, and wear. The edges of the cap are often rounded or chamfered for a smooth and comfortable feel, ensuring a pleasant user experience even during extended use.

Illumination Feature
The illumination aspect of this button is a key highlight. It is equipped with an integrated LED light source that can be customized to emit different colors, such as red, green, blue, white, or even multi - colored patterns. The lighting is precisely diffused through the cap, creating a uniform and vibrant glow. In video - related applications, this illumination serves multiple purposes. For instance, in video editing consoles, a green light might indicate that a particular video track is active and being processed, while a red light could signal an error or a paused state. The ability to control the illumination intensity and lighting effects, such as steady - on, blinking, or fading, further adds to its versatility, enabling it to convey complex status information at a glance.

Tactile Functionality
Beneath the cap lies a highly sensitive tactile mechanism. When pressed, it provides a distinct and satisfying tactile feedback, giving users a clear indication that the button has been activated. The force required to press the button is carefully calibrated to ensure ease of use without being overly sensitive to accidental touches. This tactile response is crucial in video - production environments where quick and accurate button presses are essential for seamless operation. Whether it's triggering a video recording, switching between camera feeds, or adjusting video settings, the tactile nature of the button ensures reliable and efficient control.

Electrical and Connectivity
Electronically, the button is designed to operate within a specific voltage and current range, typically compatible with standard low - voltage DC power supplies used in video equipment. It features robust electrical contacts that ensure stable and consistent electrical connections, minimizing the risk of signal loss or intermittent operation. The button can be easily integrated into circuit boards through various connection methods, such as soldering pins or surface - mount technology (SMT), making it suitable for both prototyping and mass - production scenarios.
