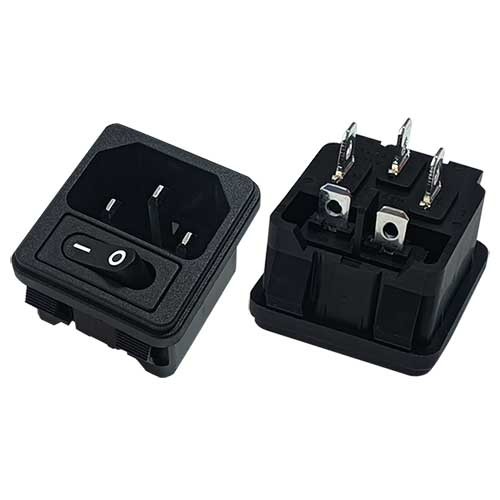

AC Male Power Socket

An AC Male Power Socket, often referred to as a male power inlet, is a critical electrical component designed to allow the safe and reliable transfer of alternating current (AC) power into electronic devices or appliances. It is specifically engineered to accept a matching female connector (such as a power cord or plug) to provide a secure interface for supplying power.

Key Features and Design:

1. Pin Configuration:

• Male Connector: The socket features protruding pins, typically three in number: live (L), neutral (N), and ground (G). These pins directly interface with the corresponding female connector to complete the circuit.

• 2-Pin and 3-Pin Variants: Depending on the design, a male AC socket can either have two pins (live and neutral) or three pins (live, neutral, and ground) for applications that require grounding for safety.

2. Mounting Style:

• Chassis or Panel Mount: Most AC male power sockets are designed to be mounted on the chassis or panel of a device. The socket is secured using screws or clips, ensuring a robust connection to the body of the equipment.

• Plug-and-Play Installation: The socket is typically positioned at the rear or side of a device to allow easy access for power connection, while internally, it is wired to the device’s power circuitry.

3. Materials and Build Quality:

• Housing Material: The body of the socket is usually made of high-quality, heat-resistant plastic or thermoset materials to prevent overheating and ensure electrical insulation.

• Contact Material: The pins are typically made from brass or copper alloys with nickel or silver plating to ensure low electrical resistance and durability, even in high-use environments.

4. Voltage and Current Ratings:

• Standard Ratings: AC male power sockets are available in a variety of voltage and current ratings, typically ranging from 125V to 250V and 6A to 16A. The appropriate rating depends on the device's power requirements and the region’s electrical standards.

• IEC Standards: Many AC sockets comply with IEC 60320 standards, such as C14 (for 250V, 10A) or C20 (for 250V, 16A), which are commonly used in computers, networking equipment, and other electronics.

Applications:

1. Consumer Electronics:

• Commonly found in devices such as desktop computers, monitors, printers, and home appliances like TVs and audio systems. The AC male socket allows these devices to be easily connected to household power supplies.

2. Industrial Equipment:

• Frequently used in industrial control panels, power tools, laboratory equipment, and testing instruments. The secure mounting and reliable connections make it ideal for equipment that requires stable power input and frequent movement or servicing.

3. Networking and IT Equipment:

• Servers, routers, and network switches use standardized AC male sockets to interface with power distribution units (PDUs) or uninterruptible power supplies (UPSs). These connectors are typically designed for high-current applications and provide reliable connections in critical environments.

Key Considerations for Selection:

1. Voltage and Current Compatibility:

• Choose a socket that matches the device's power specifications, ensuring it can handle the voltage and current requirements without overheating or failure.

2. Safety Certifications:

• Ensure the socket complies with necessary certifications such as UL, CE, or RoHS to guarantee safety, reliability, and environmental compliance.

3. Durability and Environmental Factors:

• For industrial or outdoor applications, select a socket with enhanced durability, capable of withstanding dust, moisture, and mechanical wear (e.g., IP-rated connectors for harsh environments).

4. Connector Type:

• Ensure that the socket's pin configuration matches the plug type (C13, C15, etc.) and that it adheres to local electrical standards to avoid compatibility issues.

Conclusion:

An AC Male Power Socket is a key component in safely delivering electrical power to electronic devices. Its reliability, standardization, and robustness make it an essential part of the design in a wide variety of consumer and industrial products. By choosing the right socket based on power ratings, safety standards, and environmental conditions, engineers can ensure the longevity and safety of their designs.
