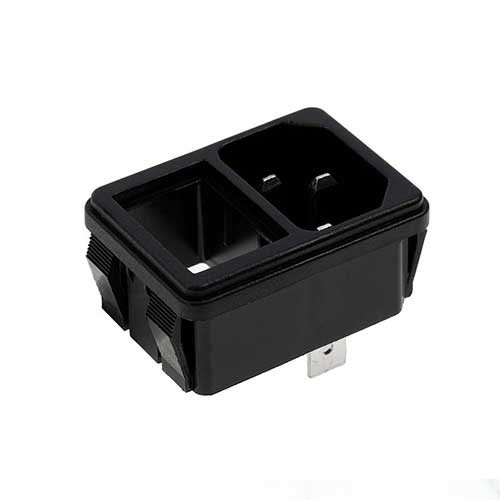

Rocker Switch Inlet Plug Connector Socket

A Rocker Switch Inlet Plug Connector Socket is an electrical component commonly used in various appliances, electronic devices, and equipment to control the flow of power. It combines a rocker switch and a socket in a single assembly, providing a compact and efficient way to manage power connections. Here's a breakdown of its components and functions:

1. Rocker Switch:

• Definition: A rocker switch is a type of on/off switch that rocks back and forth when pressed, unlike toggle switches that flip up or down.

• Functionality: It allows users to easily turn the connected device on or off by pressing the switch. It’s a simple, mechanical way to control the power flow.

• Common Use: Rocker switches are often found on power strips, household appliances, and electronic devices.

• Design: Rocker switches are designed to be easy to use, typically indicating "on" and "off" positions clearly with symbols (like "|" and "O" for on and off respectively).

2. Inlet Plug Connector:

• Definition: This is where the power cord or plug connects to the socket, allowing electrical energy to enter the device or appliance.

• Standard Types: The most common types are IEC connectors (International Electrotechnical Commission), which are standardized plugs used for connecting power cords to various electrical equipment.

• Safety Features: Often, these inlets are equipped with features like fuse holders or integrated voltage selectors, ensuring safe and appropriate power flow to the device.

• Applications: They are used in a wide range of applications, from computers to industrial equipment.

3. Connector Socket:

• Definition: A connector socket serves as the interface between the external power source and the internal circuitry of the device.

• Types of Sockets: Depending on the application, there are different standards for sockets, including IEC C13, C14, and others. These sockets ensure compatibility with the appropriate plugs, and they’re often designed to provide a secure and stable connection.

• Mounting Options: Connector sockets can be panel-mounted for permanent fixtures or designed for detachable power cords.

4. Integrated Design:

• The combination of the rocker switch, inlet plug, and connector socket in a single unit saves space and simplifies wiring. It is common in devices where there is a need for frequent power cycling or easy access to the power connection.

5. Applications:

• Home Appliances: Used in devices like coffee makers, blenders, and vacuum cleaners where power needs to be controlled directly by the user.

• Industrial Equipment: Often found in machinery, power tools, and testing equipment where space and efficient control are crucial.

• Computer and Networking Gear: Common in servers, routers, and other networking devices that require reliable and standardized power connections.

6. Key Considerations:

• Current Rating: Ensure the component is rated for the appropriate voltage and current required by the device.

• Quality and Durability: Higher quality components can offer better durability, especially in demanding environments.

• Safety Standards: Look for components that meet necessary safety regulations (like UL, CE, or RoHS certifications) to avoid hazards.

In summary, the Rocker Switch Inlet Plug Connector Socket is a versatil
