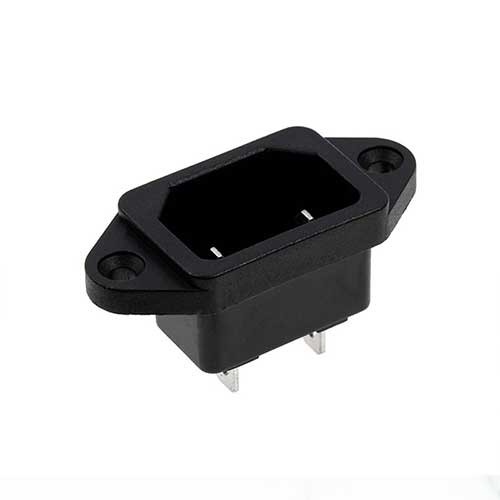

C14 Chassis Mount 2 Pin AC Power Socket

The C14 Chassis Mount 2-Pin AC Power Socket is a commonly used electrical connector designed for devices that require a secure, standardized way to connect to an AC power source. This type of socket is widely used in both consumer electronics and industrial equipment. Here's a basic introduction to its key features and functionality:

1. Connector Type:

• C14 Standard: The C14 is part of the IEC 60320 standard, which defines a series of connectors and inlets for connecting power to electronic devices. Specifically, the C14 refers to a male connector with three prongs, typically used to supply power to devices from a standard power cord with a matching C13 female connector.

• 2-Pin Design: In the case of a 2-pin configuration, one pin is used for live (L) power, and the other for neutral (N), while the ground (G) pin may be omitted in some variations, depending on specific application requirements.

2. Chassis Mount:

• Mounting Style: The chassis mount design allows the socket to be securely fixed into the body or frame of the device, usually through screws or clips. This ensures the socket remains in place and provides a reliable power connection to the internal circuitry.

• Installation: It’s designed for easy installation into panels or enclosures of various appliances, making it a popular choice for manufacturers.

3. Voltage and Current Ratings:

• Typical Ratings: The C14 socket is generally rated for voltages up to 250V and currents up to 10A or 15A, depending on the application and specific model.

• Compatibility: It is compatible with standard power cords used in most regions, ensuring easy and safe connection to power outlets.

4. Applications:

• Consumer Electronics: Commonly found in devices like desktop computers, monitors, printers, and other household electronics.

• Industrial Equipment: Used in power tools, laboratory instruments, and larger machinery where stable power connections are required.

• Networking Gear: Servers, routers, and other network infrastructure devices often use C14 power sockets for secure and reliable power input.

5. Safety and Durability:

• Insulation and Grounding: The socket typically features good insulation to prevent accidental contact with live wires. Many C14 sockets also include a grounding pin (in 3-pin versions), enhancing safety.

• Durability: Built to handle repeated plugging and unplugging, it is designed to withstand wear and tear, making it ideal for devices that need frequent power cycling or movement.

6. Key Considerations:

• Compatibility: Ensure the C14 socket matches the C13 plug on your power cord.

• Certifications: Look for C14 sockets that meet international safety standards like UL, CE, or RoHS compliance, which ensure they are safe to use.
