Momentary Right Angle Switch

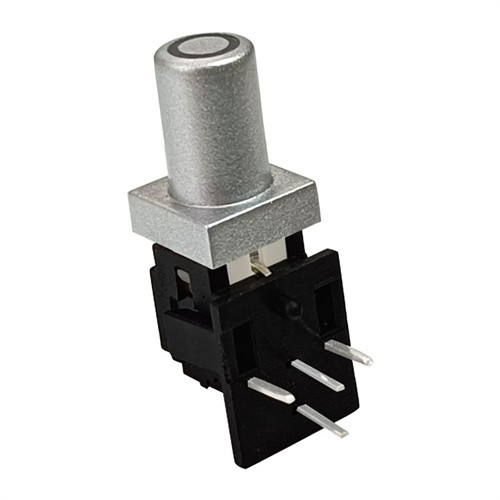

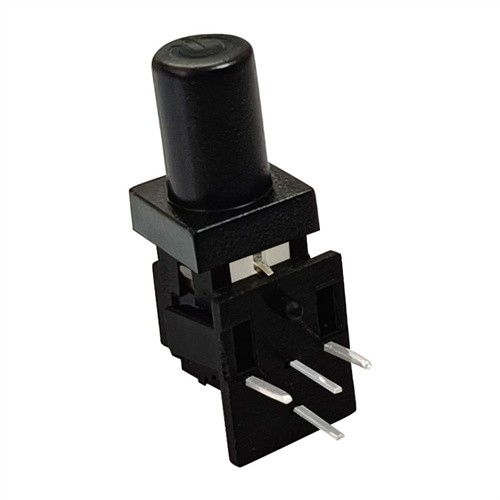

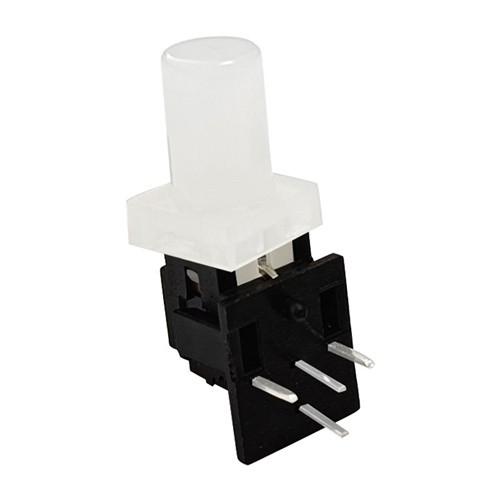

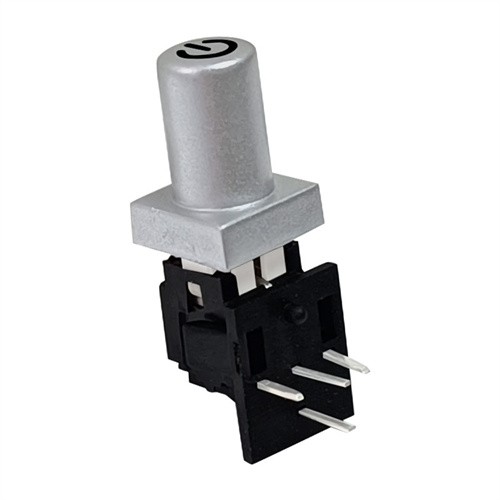

A right angled illuminated tact switch with a long cap is a type of electronic switch that is commonly used in various types of electronic devices. It is designed to be small and compact to fit into tight spaces and is known for its reliability and durability. This type of switch is often used on PCB boards where space is limited, and a conventional push-button switch would not fit.

One of the distinguishing features of a right angled illuminated tact switch with a long cap is the LED illumination. This switch has an illuminated cap that lights up when the switch is pressed. The color of the LED can vary from red, blue, green, and amber. The illumination serves as an indicator to let the user know that the switch has been activated. The illumination can also be used to indicate the status of a device or function.

A momentary LED right angle switch is a specialized electronic component designed to provide temporary electrical contact when pressed, along with integrated LED illumination, typically in a right angle configuration. These switches are commonly used in various electronic devices where temporary activation, tactile feedback, visual indication, and precise user interaction are required.

Momentary LED right angle switches feature an actuation mechanism that is oriented perpendicular to the surface of the printed circuit board (PCB). This right angle configuration allows for convenient actuation even in cramped spaces, providing flexibility in installation and usage.

The long cap of the switch is designed to provide a larger surface area to make it easier for the user to locate and operate the switch. The cap can also be used to provide additional labeling or indication. The longer cap also provides better tactile feedback when the switch is pressed, giving the user a more satisfying and reliable experience.

PRODUCT PROFILE
Model	TS20-00TWU
Product Item	Illuminated Tact Switch
Switch Size	6.0*6.0*mm
LED Options	White/ Red/Blue/Yellow/Green/ bi-color
Actuation Force	250gf
Function	Momentary
Terminal Style	Through Hole
Payment	T/T 100% in advance
Delivery	15-20 workdays
Shippment	DHL/ FedEx /UPS

PRODUCT DIMENSION

PRODUCT CATEGORY

Illuminated Tactile switches, button switches, toggle switches, rocker switches, slide switches, microswitches, sockets and connectors, as well as hardware stamping and plastic injection.

cOMPANY INFO

Rucoe Electronics is a leading manufacturer of illuminated switches which was established in 2013，our office is located in Shenzhen, and our factory in Dongguan which names Dongguan FVWIN Electronics Co.,Ltd. We provides high quality, high precision switches.with Innovative, Good quality management philosophy, strive hard to improve product design, tooling, injection molding technology, our product include in illuminated tact switch, push button switch, toggle switch, rocker switch, slide switch, DIP switch, wafer terminal ,AC & DC socket and connectors.

OUR EXHIBITIONS

EQUIPMENT

We have horizontal injection molding machine,punching machine,vertical milling machine,life tester,insulation resistance tester,salt spray tester,load curve meter,laser engraving machine.

CERTIFICATIONS

Rucoe meets its customers' highest demands through certified quality, environmental and safety management systems;we also offer OEM and ODM etc strategic customized service.
